£14.08
excl. VAT
£16.90 incl. VAT
£16.90
incl. VAT
£14.08 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread type | Metric |
|---|---|
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 8 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 3, diameter | 8 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Male |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2401, 2353 |

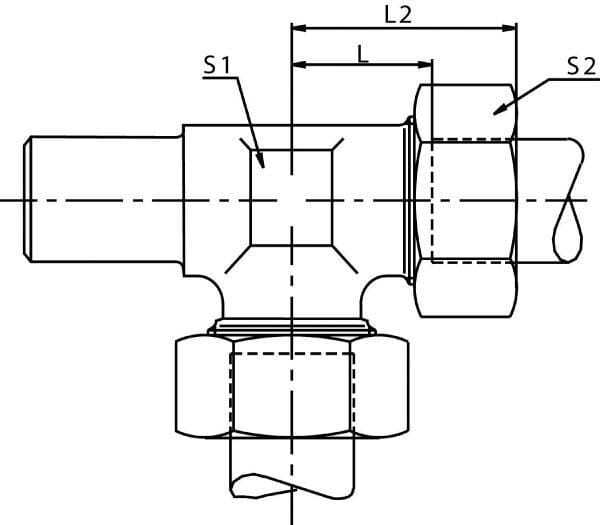

| L2Connection no 1 center to end distance | 32 mm |
| LConnection 2, centre to end distance | 17 mm |
| Max working pressure | 800 BAR |
| Pipe diameter | 8 mm |
| Product details | 2S cutting ring- Optimum cutting ring connection and functionality, Multiple corrosion resistance |
| S1Body height | 14 mm |
| S2Connection no 1 wrench size | 19.0 mm |
| Series | S |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 100 g |
| Dimensions | 62 × 45 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000245392

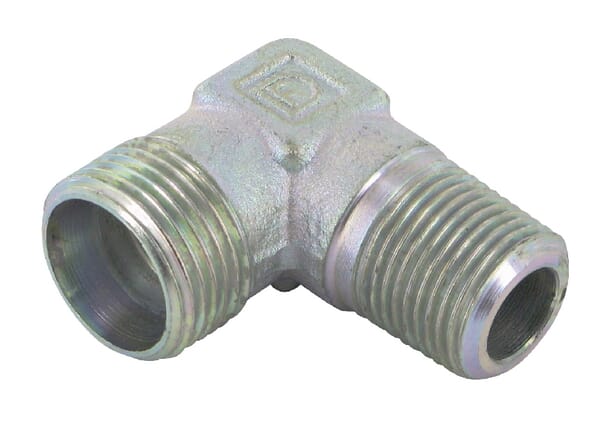

Voss Elbow coupling CMCAG13x8.13NU CMCAG13813NU
£5.43 excl.
£6.52 incl.
In stock
Expected to ship on Thursday 1 October
BPA000287812
Voss Coupling 10L R3/8 GES10LR38WD
£2.55 excl.
£3.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288167
Voss Coupling 28L 1-1/16UNF GES28L1116UNF
£30.33 excl.
£36.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288200
Voss Cut ring coupling 30S M42x2,0 - BSP 1 1/4" - Male GES30SR114
£16.20 excl.
£19.44 incl.
In stock
Expected to ship on Friday 2 October
BPA000402425
Voss Elbow Coupling 14S M20 WEV14SM20
£16.21 excl.
£19.45 incl.
In stock
Expected to ship on Thursday 1 October
BPA000258173

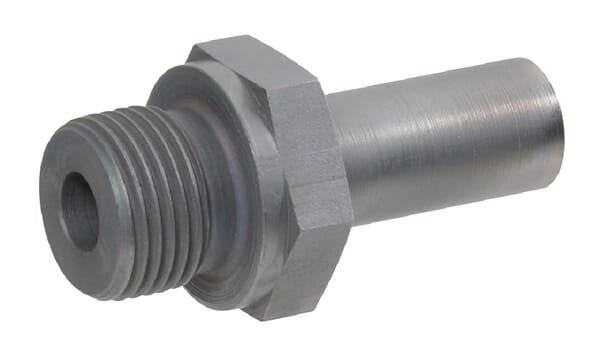

Voss Coupling 6L R1/8 EGES6LR18WD
