£25.07
excl. VAT
£30.08 incl. VAT
£30.08
incl. VAT
£25.07 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

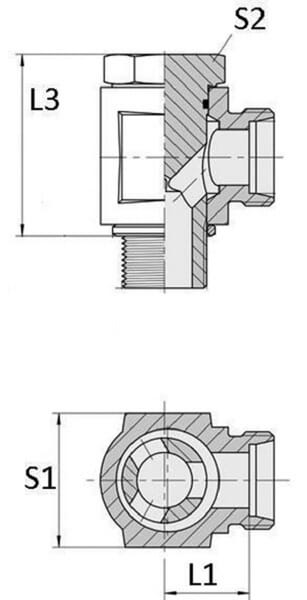

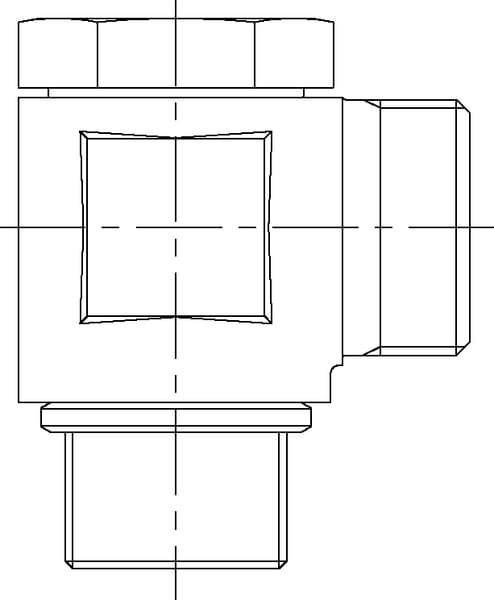

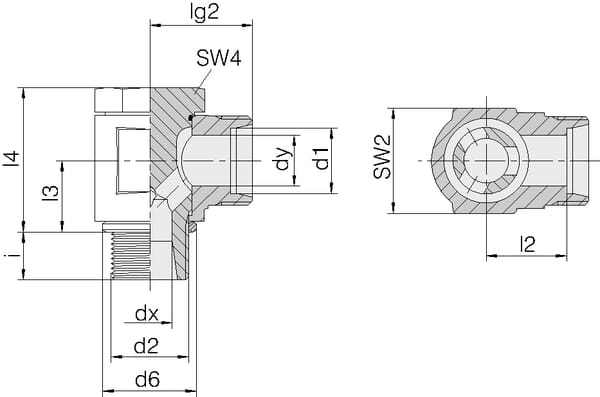

Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Banjo |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 21.5 mm |
| Connection 2, diameter | 16 mm |
| Connection 2, length | 43 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 center to end distance | 30 mm |
| Connection no 1 diameter | 15 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 11 mm, 12 mm |
| ISO standard | 228 |
| L1Connection no 1 thread length | 14 mm |
| Max. tightening torque | 140 N·m |
| Max working pressure | 400 BAR |
| Product details | Multiple corrosion resistance, Adjustable direction, The adjusted direction is fixed by lock nut |
| S2Connection no 1 wrench size | 27.0 mm |
| Seal material | Metal |
| Series connection 1 | 16S |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 244 g |
| Dimensions | 170 × 113 × 95 mm |
| Dangerous goods | No |
