Roll over image to zoom in · Click to see full view
£41.53
excl. VAT
£49.84 incl. VAT
£49.84
incl. VAT
£41.53 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

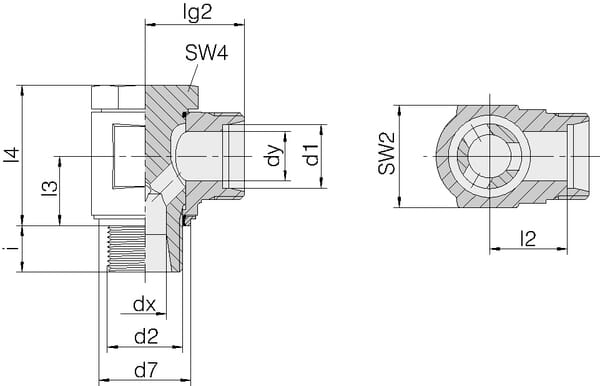

Product details
| Connection 1, thread diameter | M26 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Banjo |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 24 mm |
| Connection 2, diameter | 22 mm |
| Connection 2, length | 48 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Banjo |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |

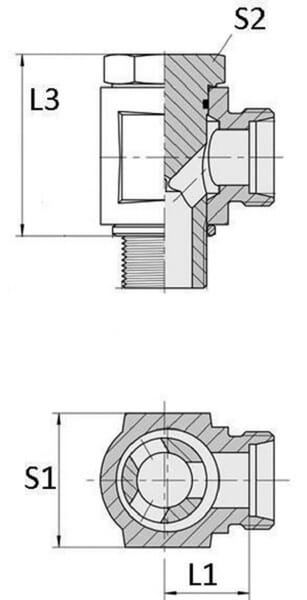

| Connection no 1 center to end distance | 34.5 mm |
| Connection no 1 diameter | 22 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 15 mm, 19 mm |
| ISO standard | 228 |
| L1Connection no 1 thread length | 16 mm |
| Max. tightening torque | 180 N·m |
| Max working pressure | 250 BAR |
| Product details | Multiple corrosion resistance, Adjustable direction, The adjusted direction is fixed by lock nut, Hydraulic hose, Hydraulic pipes, Available in stainless steel on request |
| S2Connection no 1 wrench size | 32.0 mm |
| Seal material | Metal, Synthetic elastomer |
| Series connection 1 | 22L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 365 g |
| Dimensions | 68 × 54 × 37 mm |
| Dangerous goods | No |
