Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |

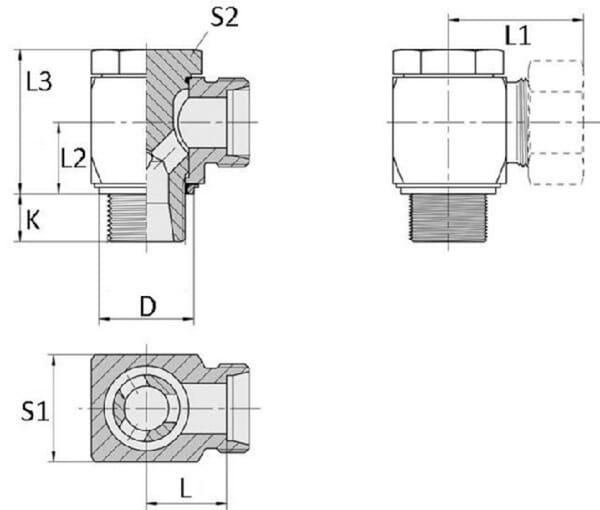

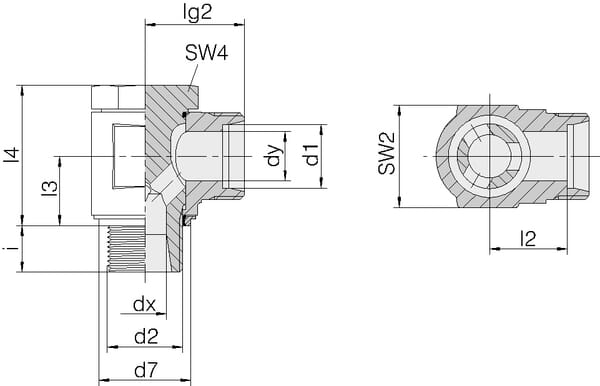

| Connection 2, centre to end distance | 13.5 mm |
| Connection 2, length | 27 mm |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Banjo |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 29.5 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 5 mm, 4 mm |
| ISO standard | 228 |
| L1Connection no 1 thread length | 10 mm |
| Max. tightening torque | 45 N·m |
| Max working pressure | 500 BAR |
| Product details | Multiple corrosion resistance, Adjustable direction, The adjusted direction is fixed by lock nut |
| S3Connection no 1 wrench size | 19.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 6L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 71 g |
| Dimensions | 43 × 30 × 20 mm |
| Dangerous goods | No |
You might also like

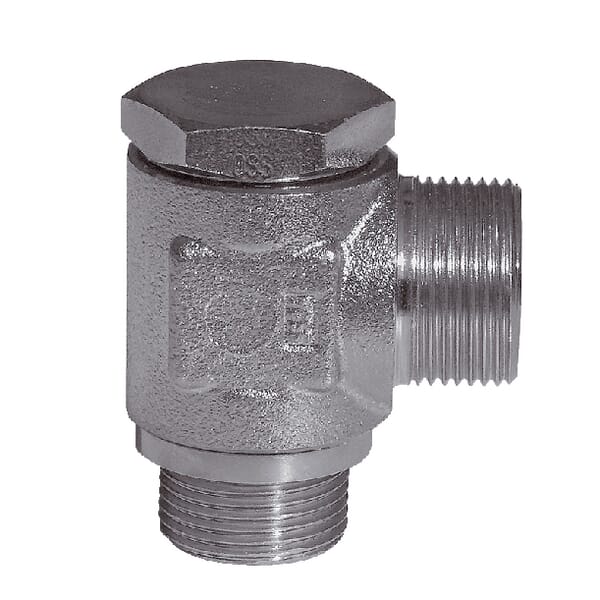

BPA000355167
