£16.32
excl. VAT
£19.58 incl. VAT
£19.58
incl. VAT
£16.32 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | Metric |
| Connection 1, type | Banjo |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 12 mm |
| Connection 2, length | 30 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Banjo |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 center to end distance | 37 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 threads per inch | 19 |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 5 mm, 10 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 15.5 mm |
| Max. tightening torque | 45 N·m |
| Max working pressure | 400 BAR |
| Product details | Multiple corrosion resistance, Adjustable direction, The adjusted direction is fixed by lock nut |
| S3Connection no 1 wrench size | 19.0 mm |
| Seal material | Metal |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 95 g |
| Dimensions | 45 × 32 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000310395
Voss L coupling 8L R1/4 LEV8LRK14
£18.82 excl.
£22.58 incl.
In stock
Expected to ship on Friday 25 September
BPA000376143
Voss T piece 28L TS28L
£27.26 excl.
£32.71 incl.
In stock
Expected to ship on Monday 28 September

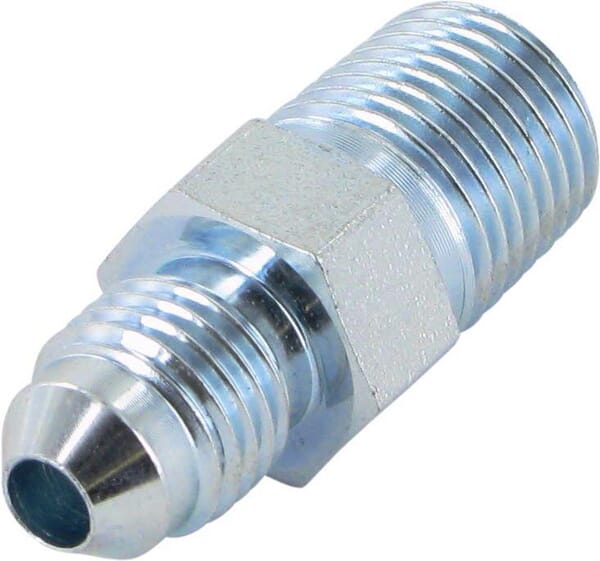

BPA000349175
