About this product

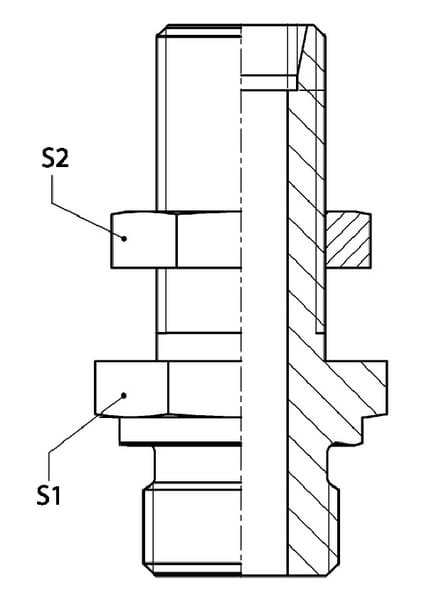

A straight bulkhead coupling for hydraulic hose and pipe applications. It passes through a panel or bulkhead and is held securely in place by its lock nut.
One end is a 12L cutting-ring connection for 12 mm pipe with an M18 × 1.5 male thread, measuring 75 mm in length; the other is a 1/2 in BSP male thread (14 TPI). Both connections take a 24 mm spanner. The coupling is galvanised, withstands pressures up to 400 bar, and includes the adapter, lock nut, cutting ring and union nut.
Made to DIN 2353, DIN 2401, DIN 3852, DIN 228 and ISO 228.
Product details
| Connection 1, thread diameter | M18 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 length | 75 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Benefits:, Low risk of leakage, Consists of:, Adapter, Lock nut, Cutting ring, Union nut, Details:, Connec |
| Max working pressure | 400 BAR |
| S1Connection no 1 wrench size | 24.0 mm |
| Series connection 1 | 12L |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | 8719607056175 |
|---|---|
| Unit of measure | EA |
| Weight | 140 g |
| Dimensions | 70 × 35 × 28 mm |
| Dangerous goods | No |
