£12.91
excl. VAT
£15.49 incl. VAT
£15.49
incl. VAT
£12.91 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 diameter | 15 mm |
| Connection no 1 length | 78 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| Max working pressure | 400 BAR |
| S1Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 15L |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 190 g |
| Dimensions | 74 × 34 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000288547
Voss Coupling 25S 1-5/16UNF GEV25S1516UNF
£44.02 excl.
£52.82 incl.
In stock
Expected to ship on Monday 5 October
BPA000288219

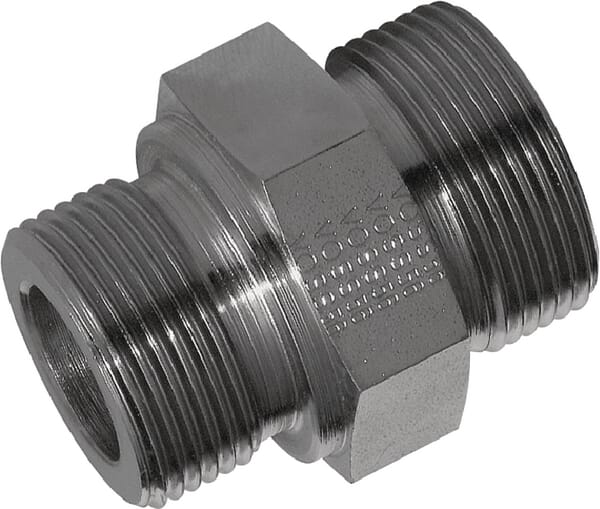

Voss Cut ring coupling 35L M45x2,0 - BSP 1" - Male GES35LR1
