Roll over image to zoom in · Click to see full view
£26.16
excl. VAT
£31.39 incl. VAT
£31.39
incl. VAT
£26.16 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

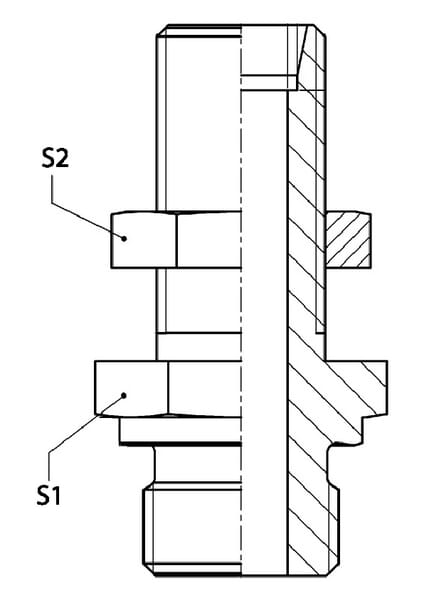

Product details
| Connection 1, thread diameter | M26 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 diameter | 18 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| Max working pressure | 400 BAR |
| S1Connection no 1 wrench size | 32.0 mm |
| Series connection 1 | 18L |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 206 g |
| Dimensions | 67 × 41 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000316637

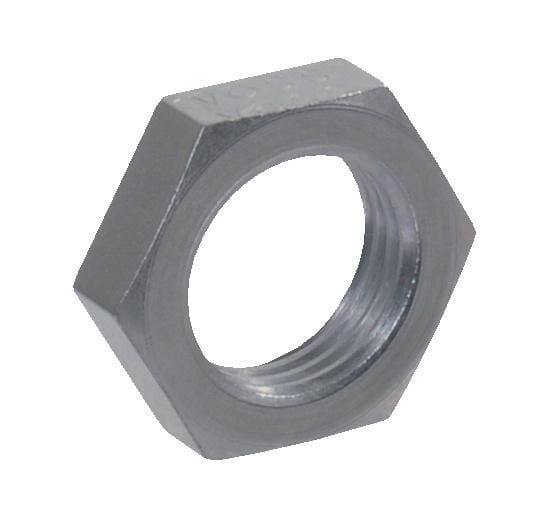

Voss Locknut M18x1.50 steel MSV1815
