£24.46
excl. VAT
£29.35 incl. VAT
£29.35
incl. VAT
£24.46 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 22 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 diameter | 22 mm |
| Connections distance | 16.5 mm |
| DIN standard | 80750, 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |
| Inside diameter | 19 mm |
| Material | Steel |
| Max working pressure | 250 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 36.0 mm |
| S2Hexagon nut size | 41 mm |
| Series connection 1 | 22L |
| Series connection 2 | 22L |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 439 g |
| Dimensions | 116 × 57 × 47 mm |
| Dangerous goods | No |
You might also like
BPA000402402
Voss Angled screw connection WES8SM14
£7.67 excl.
£9.20 incl.
In stock
Expected to ship on Monday 5 October
BPA000348139

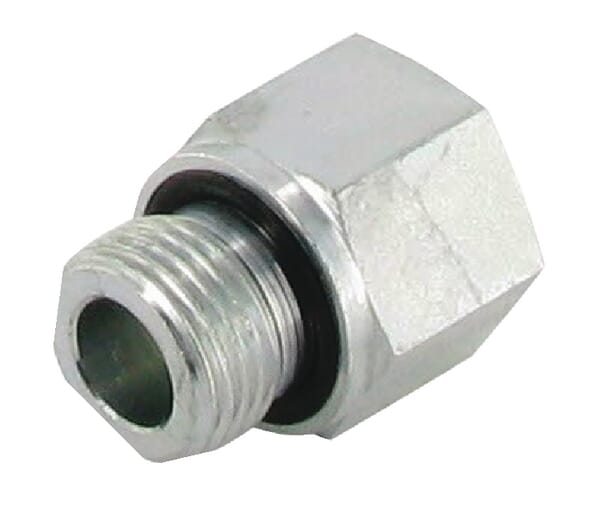

Voss Reducing Adaptor M/F (CS) R1/4 R3/8 REDR1438WD
