Roll over image to zoom in · Click to see full view
£14.30
excl. VAT
£17.16 incl. VAT
£17.16
incl. VAT
£14.30 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 28 mm |
|---|---|
| Connection 1, thread diameter | 9/16 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 9/16 Inch |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401, 2353, 3852 |
| Inside diameter | 7 mm |

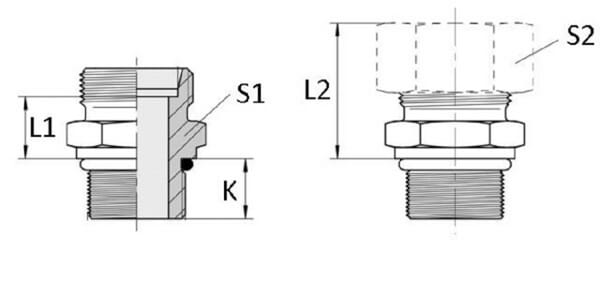

| KConnection no 1 thread length | 10 mm |
| L1Connection 2, centre to end distance | 11 mm |
| L2Connection no 1 center to end distance | 26 mm |
| Max. tightening torque | 30 N·m |
| Max working pressure | 500 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request, SAE standard : 514 |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 19.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 10L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29 g |
| Dimensions | 28 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000232552
Voss Weldcoupling 15L ASS15L
£2.59 excl.
£3.11 incl.
In stock
Expected to ship on Friday 2 October
BPA000348134

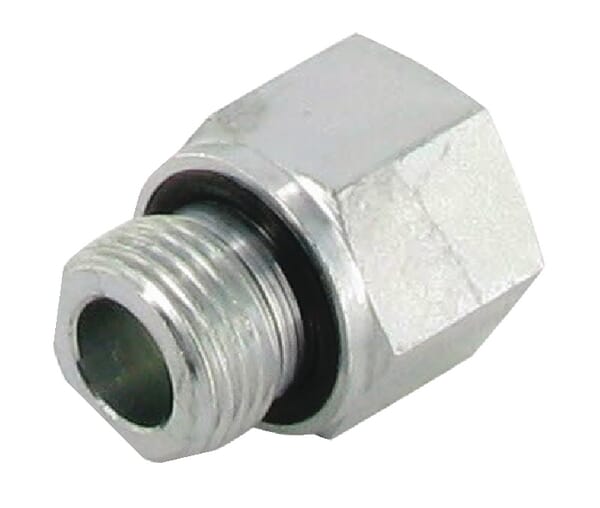

Voss Reducing Adaptor M/F (CS) R1/4 R1/2 REDR1412WD
