Roll over image to zoom in · Click to see full view
£1.34
excl. VAT
£1.61 incl. VAT
£1.61
incl. VAT
£1.34 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 30 mm |
|---|---|
| Connection 1, thread diameter | M14 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | NPT |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 7 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 11 mm |
| L2Connection no 1 center to end distance | 26 mm |
| Max. tightening torque | 55 N·m |
| Max working pressure | 400 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 19.0 mm |
| Series connection 1 | 10L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29 g |
| Dimensions | 30 × 22 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000349196

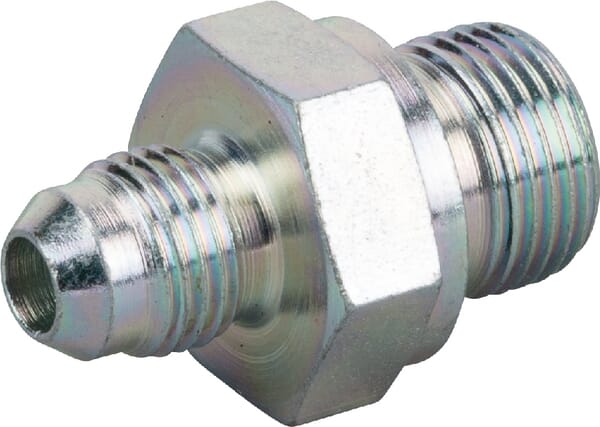

Voss Changeover 1/2 JIC x 3/8 BSP RIBV0806WD
£5.82 excl.
£6.98 incl.
In stock
Expected to ship on Monday 5 October
BPA000288412
Voss Bulkhead coupling 18L R3/4 GESV18LR34
£20.24 excl.
£24.29 incl.
In stock
Expected to ship on Monday 5 October
BPA000400089
Voss Elbow Coupling 6L WV6L
£8.52 excl.
£10.22 incl.
In stock
Expected to ship on Monday 5 October
BPA000306989
Voss Equal cross 10L KV10L
£33.39 excl.
£40.07 incl.
In stock
Expected to ship on Monday 5 October
BPA000355258

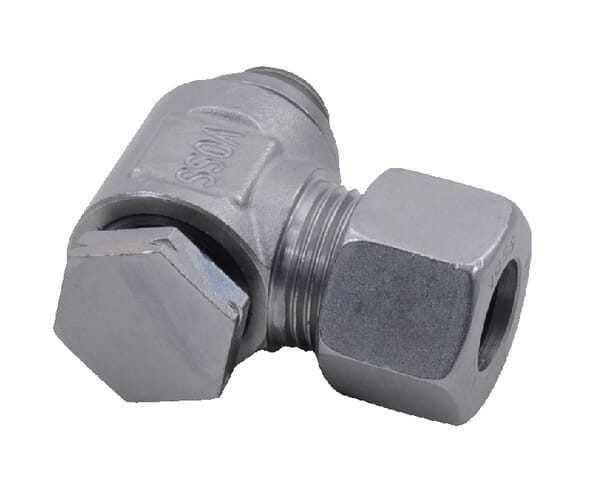

Voss Banjo coupling 8S-1/4" BSP RSWV8SR14
