£5.27
excl. VAT
£6.32 incl. VAT
£6.32
incl. VAT
£5.27 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 31.5 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 7 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 12.5 mm |
| L2Connection no 1 center to end distance | 27.5 mm |
| Max. tightening torque | 100 N·m |
| Max working pressure | 400 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 24.0 mm |
| Series connection 1 | 10L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 52 g |
| Dimensions | 31 × 27 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000287233

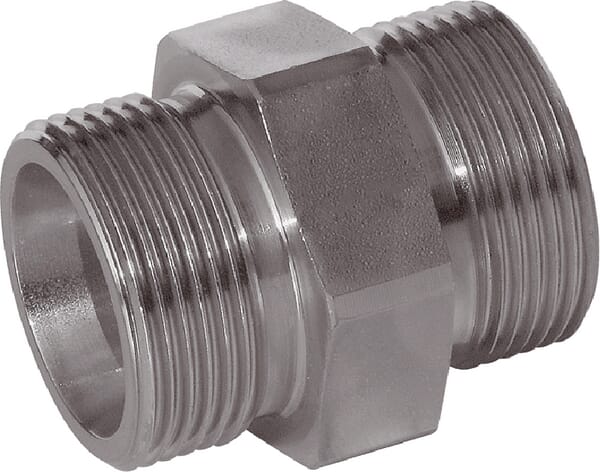

Voss Straight Adaptor (no M/R) 6LL GS6LL
£1.34 excl.
£1.61 incl.
In stock
Expected to ship on Friday 2 October
BPA000279917
Voss Coupling 10L M14 GAV10LM14
£10.89 excl.
£13.07 incl.
In stock
Expected to ship on Friday 2 October
BPA000287923
Voss Coupling 12S 3/8NPT GES12S38NPT
£3.23 excl.
£3.88 incl.
In stock
Expected to ship on Friday 2 October
BPA000402324
Voss Elbow coupling 12L R3/8 WES12LRK38
£8.05 excl.
£9.66 incl.
In stock
Expected to ship on Friday 2 October
BPA000315050

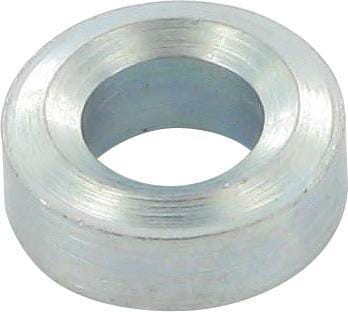

Voss Pressure gauge Ring 1/4" MA9RING14
