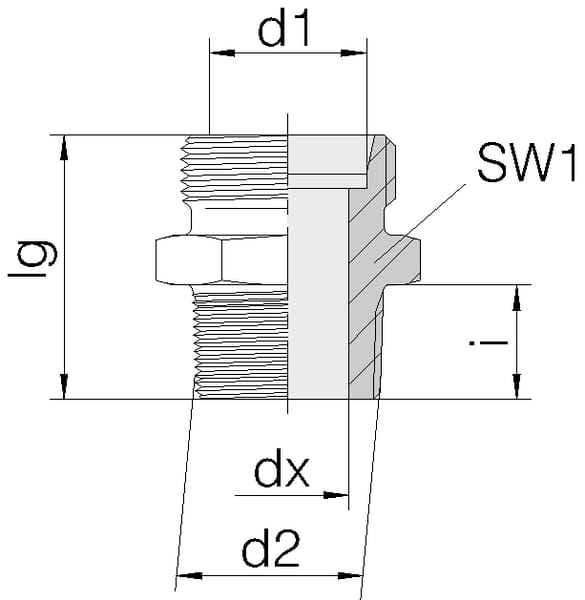

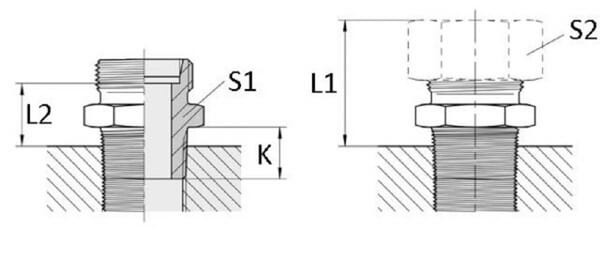

Product details
| ANSI standard | B1.20.1-1983. |
|---|---|
| Body height | 35.2 mm |
| Connection 1, thread diameter | 3/8 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2353 |
| Inside diameter | 10 mm |
| KConnection no 1 thread length | 10.4 mm |
| Max. tightening torque | 55 N·m |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring |
| S1Connection no 1 wrench size | 22.0 mm |
| Series connection 1 | 10S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 49 g |
| Dimensions | 35 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000396351
Voss Plug+union nut 35L VSMV35L
£13.94 excl.
£16.73 incl.
In stock
Expected to ship on Friday 2 October
BPA000247406

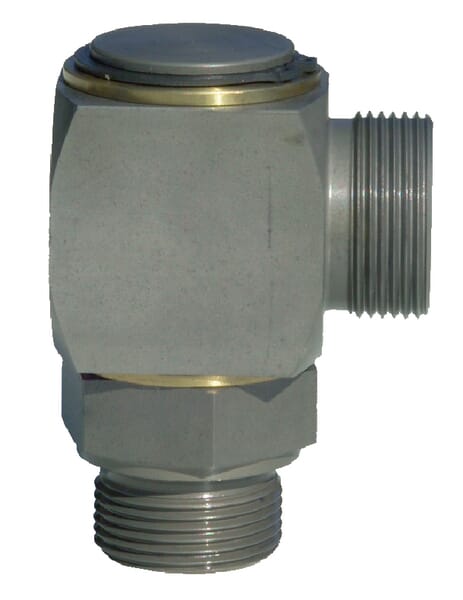

Voss Swivel banjo 10S R3/8 DGWEV10SR38
