Roll over image to zoom in · Click to see full view
£8.21
excl. VAT
£9.85 incl. VAT
£9.85
incl. VAT
£8.21 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

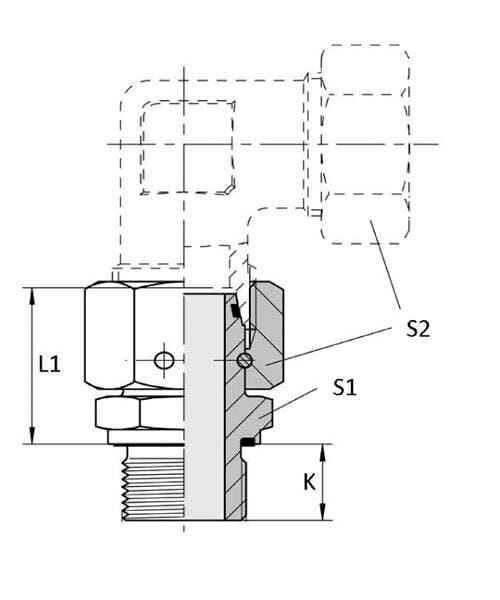

Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Seal ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401 |
| Inside diameter | 6 mm |
| KConnection no 1 length | 12 mm |
| L1Connection 2, centre to end distance | 32 mm |
| Max. tightening torque | 80 N·m |
| Max working pressure | 800 BAR |
| Product details | WD = Pre-assembled with flexible seal, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 22.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 10S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 96 g |
| Dimensions | 45 × 25 × 22 mm |
| Dangerous goods | No |
