£4.52
excl. VAT
£5.42 incl. VAT
£5.42
incl. VAT
£4.52 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 34 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 5 mm |
| GConnection no 1 diameter | 10 mm |
| iConnection no 1 thread length | 12 mm |
| ISO standard | 228 |
| L2Connection no 1 center to end distance | 30.5 mm |
| LConnection 2, centre to end distance | 14.5 mm |
| Max. tightening torque | 60 N·m |
| Max working pressure | 800 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes - Do not use for 4-layer hose HDR (4SP) |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 10S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 19.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42 g |
| Dimensions | 35 × 20 × 20 mm |
| Dangerous goods | No |
You might also like

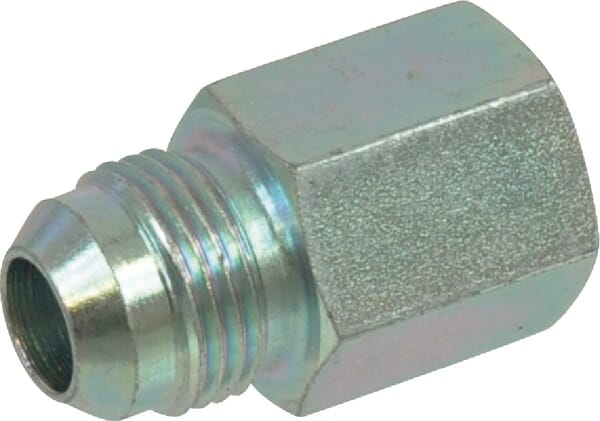

BPA000380896
Voss Adaptor with hex, 7/16 JIC x 1/4 BSP UFA07MJ04FG
£5.93 excl.
£7.12 incl.
In stock
Expected to ship on Friday 2 October
BPA000287449
Voss Coupling 12L 10L GV1210L
£8.25 excl.
£9.90 incl.
In stock
Expected to ship on Friday 2 October

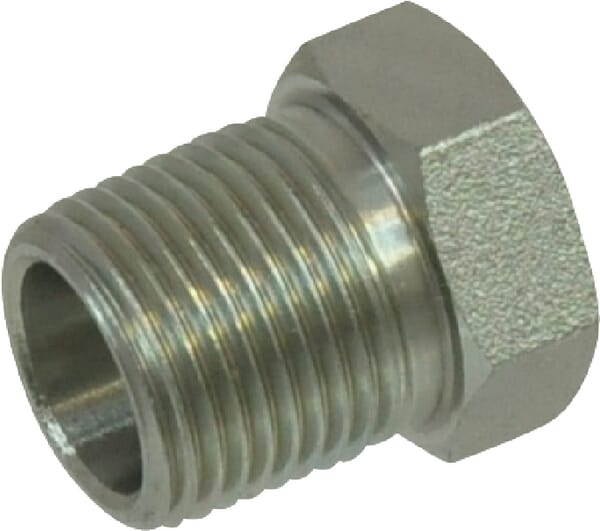

BPA000396065
Voss Nipple male/female 3/8 BSP thread x1/4 BSP VRBTB0604
£3.08 excl.
£3.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374166
Voss Pre Assembly stud S12 TDCRPTS12MT
£96.68 excl.
£116.02 incl.
Backorder available
Usually ships within 3–8 weeks

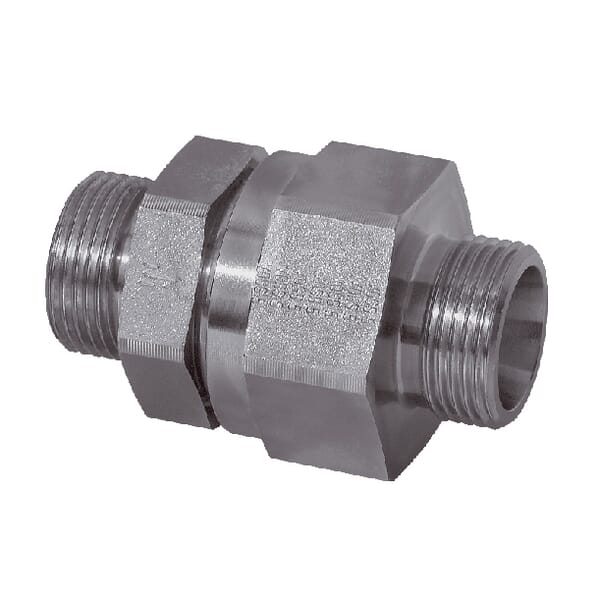

BPA000352697
