About this product
A straight screw-in hydraulic coupling sold as a single piece, featuring a 12 mm series (12L) cutting ring connection on one end and a 3/4 inch UNF thread on the other. Connection 1 comprises an M18 × 1.50 mm metric male cutting ring (2S type) with a 24 mm wrench size and 11.2 mm thread length. Connection 2 is a 3/4 inch UNF male thread with 16 threads per inch, 22 mm wrench size, and 12.5 mm centre-to-end distance. The coupling is rated to 400 bar maximum working pressure and conforms to DIN 2401, DIN 2353, and DIN 3852 standards, as well as SAE standard 514. The seal is nitrile rubber (NBR), with nickel and zinc surface treatment for corrosion resistance. Overall dimensions are 42 mm length, 27 mm width and height; weight is 76 g.
Product details
| Connection 1, thread diameter | M18 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353, 3852 |

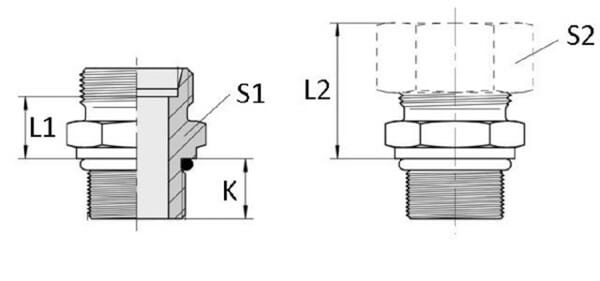

| KConnection no 1 thread length | 11.2 mm |
| L1Connection 2, centre to end distance | 12.5 mm |
| L2Connection no 1 center to end distance | 27 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Details:, 2S cutting ring, Properties:, Optimised cutting ring connection and functionality, Multiple corrosion resistance |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring- Optimum cutting ring connection and functionality, Multiple corrosion resistance - Hydraulic hose, Hydraulic pipes - Viton seal available on request, SAE standard : 514 |
| S1Connection no 1 wrench size | 24.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 12L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 76 g |
| Dimensions | 42 × 27 × 27 mm |
| Dangerous goods | No |
