Roll over image to zoom in · Click to see full view
£4.27
excl. VAT
£5.12 incl. VAT
£5.12
incl. VAT
£4.27 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 34 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 10 mm |
| GConnection no 1 diameter | 12 mm |
| iConnection no 1 thread length | 14 mm |
| ISO standard | 228 |
| L2Connection no 1 center to end distance | 27.5 mm |
| LConnection 2, centre to end distance | 13 mm |
| Max. tightening torque | 100 N·m |
| Max working pressure | 400 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes - Do not use for 4-layer hose HDR (4SP) |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 12L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 27.0 mm |
| Unit | Each |
Logistics
| EAN | 8716106786091 |
|---|---|
| Unit of measure | EA |
| Weight | 66 g |
| Dimensions | 34 × 31 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000287904
Voss Adaptor 12L 3/4 BSP GES12LR34WD
£9.07 excl.
£10.88 incl.
In stock
Expected to ship on Monday 5 October
BPA000348215
Voss 20S 10S coupling REDSD2010S
£13.73 excl.
£16.48 incl.
In stock
Expected to ship on Monday 5 October

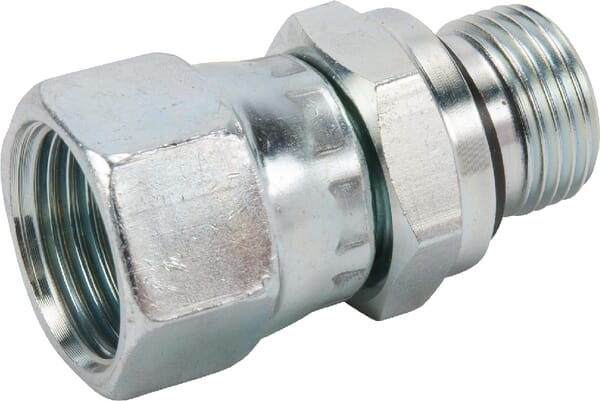

BPA000279073
Voss Adaptor F/M 1-1/16 JICx3/4 BSP FMUBV1712WD
£19.46 excl.
£23.35 incl.
In stock
Expected to ship on Monday 5 October
BPA000399824
Voss Elbow Coupling 10L WS10L
£5.65 excl.
£6.78 incl.
Backorder available
Usually ships within 3–8 weeks

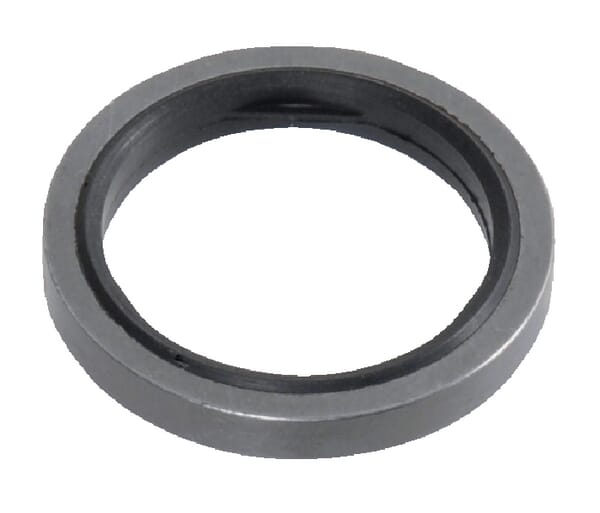

BPA000355289
