Roll over image to zoom in · Click to see full view
£8.17
excl. VAT
£9.80 incl. VAT
£9.80
incl. VAT
£8.17 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

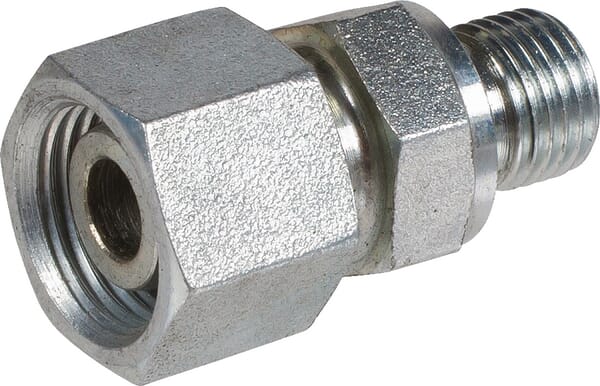

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 8 mm |
| Connection 2, length | 44.5 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 8 mm |
| Connection no 1 length | 30 mm |
| D2Series connection 1 | 8S |
| DIN standard | 2401 |
| Max working pressure | 630 BAR |
| Product details | Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Assembly with end stop, Reduced risk of leakage |
| S2Connection no 1 wrench size | 24.0 mm |
| Seal material | FKM |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 104 g |
| Dimensions | 51 × 28 × 28 mm |
| Dangerous goods | No |
