Roll over image to zoom in · Click to see full view
£8.47
excl. VAT
£10.16 incl. VAT
£10.16
incl. VAT
£8.47 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M20 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| KConnection no 1 thread length | 14 mm |
| L1Connection 2, centre to end distance | 17.5 mm |
| L2Connection no 1 center to end distance | 33.5 mm |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 12S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 140 g |
| Dimensions | 50 × 29 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000374698
Voss T piece 35L TV35L
£72.02 excl.
£86.42 incl.
In stock
Expected to ship on Monday 5 October
BPA000279939
Voss Coupling 20S R3/4 GAV20SR34
£17.67 excl.
£21.20 incl.
In stock
Expected to ship on Monday 5 October
BPA000393094

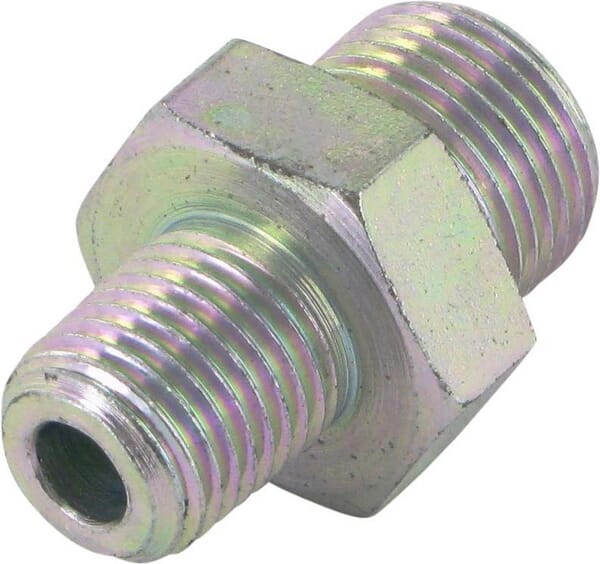

Voss Nipple 3/8 BSP x 1/4 BSPT VNBBT0604
£2.40 excl.
£2.88 incl.
In stock
Expected to ship on Monday 5 October
BPA000355267

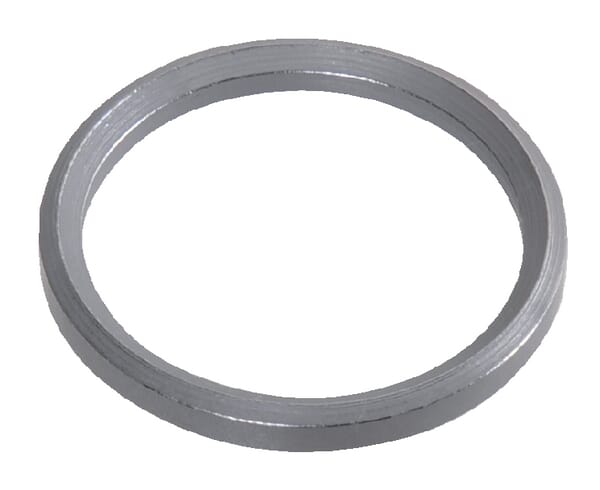

Voss RSWV seal ring metal M26x1,5 RSWV9VDKM2615
£2.60 excl.
£3.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374272
Voss T piece 10L R1/4 TEV10LR14
£19.61 excl.
£23.53 incl.
In stock
Expected to ship on Monday 5 October
BPA000350281

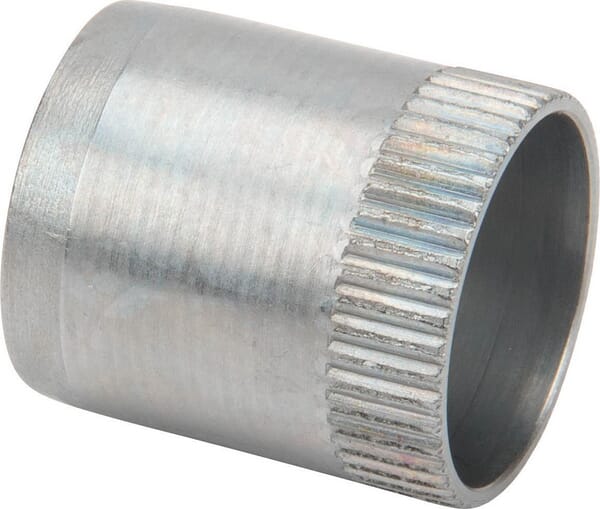

Voss Reinforcement sleeve ST diameter 10 RS10ST
