£13.65
excl. VAT
£16.38 incl. VAT
£16.38
incl. VAT
£13.65 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 32 mm |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 center to end distance | 50 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 14S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 154 g |
| Dimensions | 55 × 31 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000268324

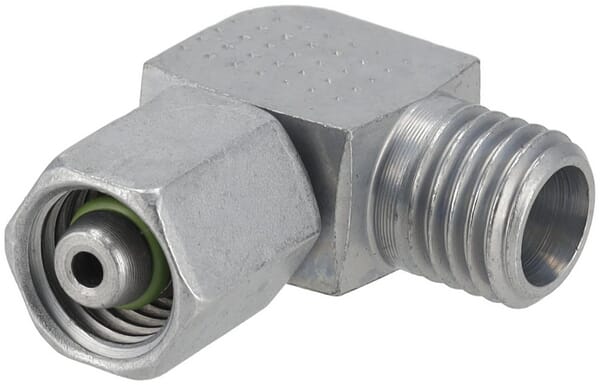

Voss Swivel elbow 90° M30x2.0 20S EWSD20S
£18.90 excl.
£22.68 incl.
In stock
Expected to ship on Friday 2 October
BPA000258173
Voss Coupling 6L R1/8 EGES6LR18WD
£7.05 excl.
£8.46 incl.
In stock
Expected to ship on Friday 2 October
BPA000381017
Voss Coupling UMCAG17x12.17NU UMCAG171217NU
£3.59 excl.
£4.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268175
Voss Adjustable male stud 16S ETV16S
£23.02 excl.
£27.62 incl.
In stock
Expected to ship on Friday 2 October
BPA000381004
Voss Coupling UMAG21x20.27NU UMAG212027NU
£4.62 excl.
£5.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348129

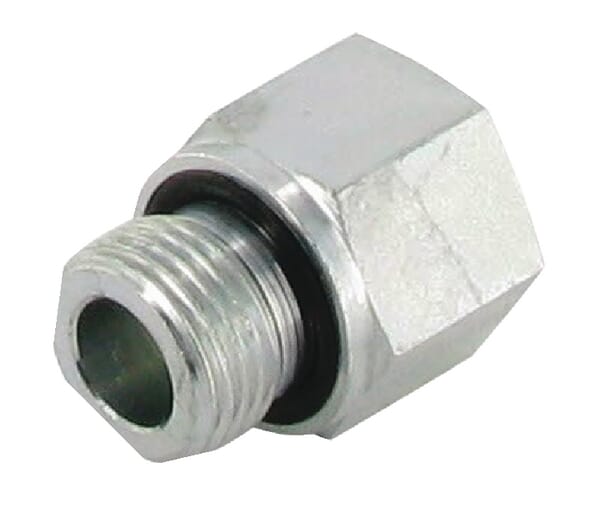

Voss Reducing Adaptor M/F (Cs) R1/2 R3/8 REDR1238WD
