£6.01
excl. VAT
£7.21 incl. VAT
£7.21
incl. VAT
£6.01 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

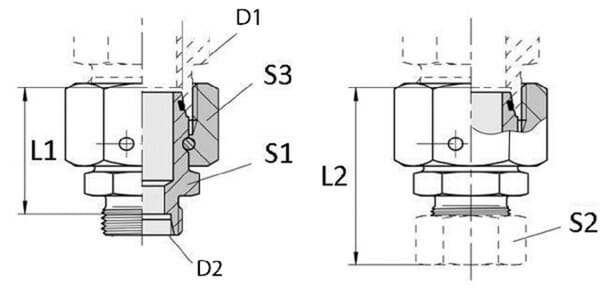

| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 length | 29 mm |

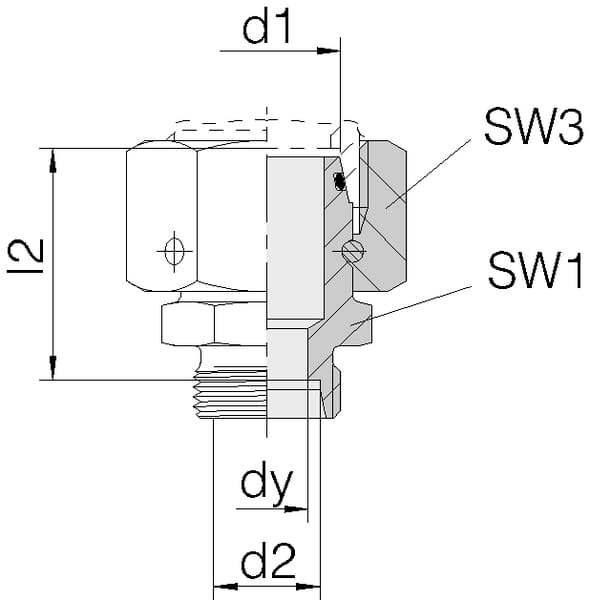

| d1Connection no 1 diameter | 15 mm |
| D2Series connection 1 | 10L |
| DIN standard | 2401 |
| dyInside diameter side 2 | 8 mm |
| L1Length | 29 mm |
| L2Total length | 29 mm |
| Max working pressure | 400 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 27.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
ES410LS
Voss Cutting ring ES4 10LS ES410LS
£2.78 excl.
£3.34 incl.
ES415L
Voss Cutting ring ES4 15L ES415L
£3.88 excl.
£4.66 incl.
MV10L
Voss Swivel nut 10L MV10L
£0.61 excl.
£0.73 incl.
MV15L
Voss Swivel nut 15L MV15L
£1.19 excl.
£1.43 incl.
SV2S10LS
Voss Cutting ring 10LS SV2S10LS
£0.51 excl.
£0.61 incl.
SV2S15L
Voss Cutting ring 15L SV2S15L
£0.65 excl.
£0.78 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 88 g |
| Dimensions | 40 × 39 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000268239
Voss Cutting ring connector 45° 12L EVSD12L
£23.25 excl.
£27.90 incl.
In stock
Expected to ship on Monday 5 October
BPA000258224
Voss Coupling 15L R3/8 EGESD15LR38WD
£14.20 excl.
£17.04 incl.
In stock
Expected to ship on Monday 5 October
BPA000279950
Voss Coupling 6L R1/8 GAV6LR18
£3.37 excl.
£4.04 incl.
In stock
Expected to ship on Monday 5 October
BPA000315160

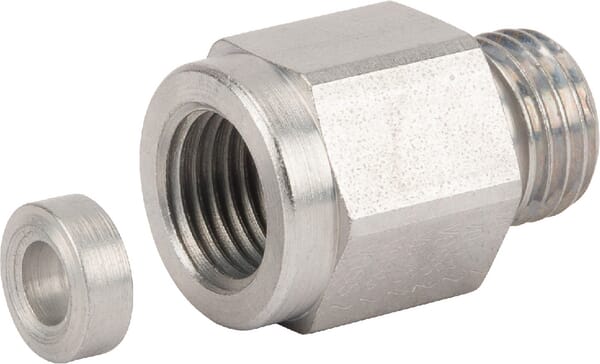

Voss Measuring coupling 10L R1/4 BS MAS10LR14
