Roll over image to zoom in · Click to see full view
£32.29
excl. VAT
£38.75 incl. VAT
£38.75
incl. VAT
£32.29 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

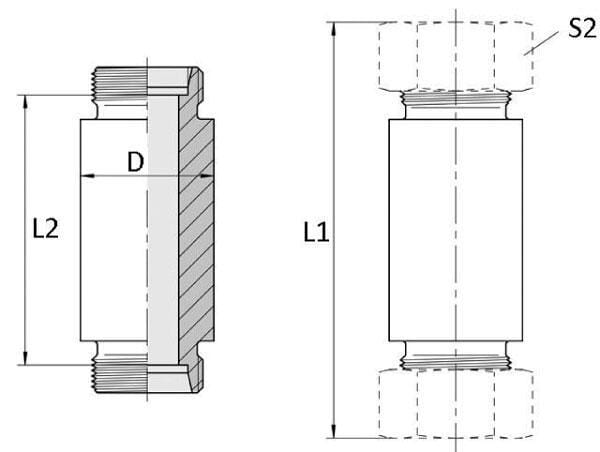

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 16 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 center to end distance | 71 mm |
| Connection no 1 diameter | 16 mm |
| Connection no 1 wrench size | 30.0 mm |
| Connections distance | 107 mm |
| DIN standard | 2401, 2353 |
| Max working pressure | 630 BAR |
| Outside diameter | 35 mm |
| Product details | Weld-on bulkhead coupling, 2S cutting ring, Optimal cutting ring connection and functionality |
| Pros | 2S cutting ring |
| Series connection 1 | 16S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 592 g |
| Dimensions | 115 × 35 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000245395

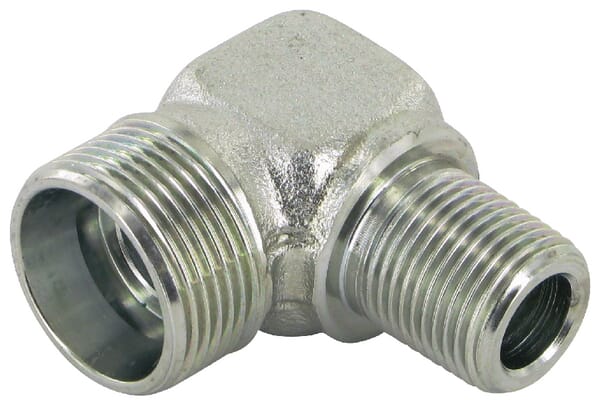

Voss Elbow coupl. CMCAG17/8x13 UNB CMCAG17813NU
