£8.98
excl. VAT
£10.78 incl. VAT
£10.78
incl. VAT
£8.98 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

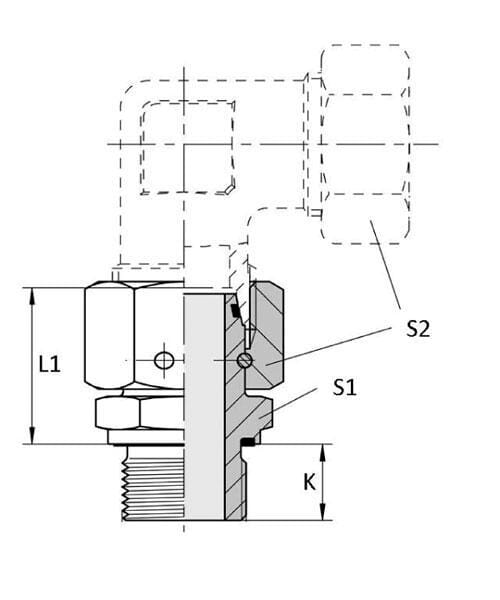

| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread length | 14 mm |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 diameter | 14 mm |
| Connection no 1 thread length | 14 mm |
| DIN standard | 2401 |
| Inside diameter | 11 mm |
| KConnection no 1 length | 14 mm |
| L1Connection 2, centre to end distance | 37 mm |
| Max. tightening torque | 150 N·m |
| Max working pressure | 630 BAR |
| Product details | Pre-assembled with O-ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 16S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 170 g |
| Dimensions | 52 × 33 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000396207
Voss End Plug (Cutting Ring) 35L VS35L
£11.00 excl.
£13.20 incl.
In stock
Expected to ship on Friday 2 October
BPA000355166
Voss Angled banjo coupling RSWS6SR14
£12.48 excl.
£14.98 incl.
In stock
Expected to ship on Friday 2 October
BPA000288614
Voss Coupling 6S R1/2 GEV6SR12
£15.62 excl.
£18.74 incl.
In stock
Expected to ship on Friday 2 October
BPA000348177
Voss 12S 6S coupling REDSD126S
£6.11 excl.
£7.33 incl.
In stock
Expected to ship on Friday 2 October
BPA000280752

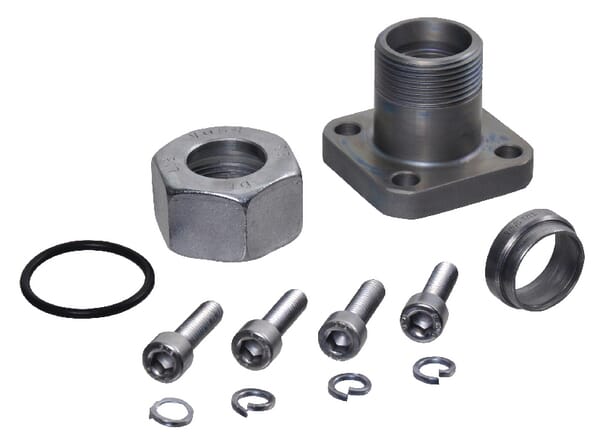

Voss Connecting flange 10L GFV10L35
