Roll over image to zoom in · Click to see full view
£3.97
excl. VAT
£4.76 incl. VAT
£4.76
incl. VAT
£3.97 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 41 mm |
|---|---|
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 12 mm |
| GConnection no 1 diameter | 16 mm |
| iConnection no 1 thread length | 14 mm |
| ISO standard | 228 |
| L2Connection no 1 center to end distance | 37 mm |
| LConnection 2, centre to end distance | 18.5 mm |
| Max. tightening torque | 150 N·m |
| Max working pressure | 630 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes - Do not use for 4-layer hose HDR (4SP) |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 16S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 27.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 92 g |
| Dimensions | 41 × 30 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000393099
Voss Nipple 3/4 BSP x 1/2 BSPT VNBBT1208
£5.31 excl.
£6.37 incl.
In stock
Expected to ship on Monday 5 October

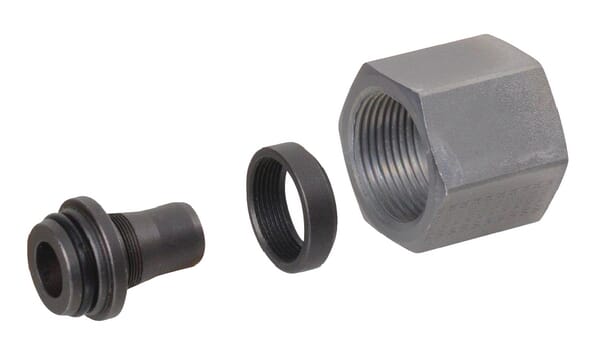

BPA000269953
Voss Flared fitting complete 38S 38x4 FFCS384
£69.25 excl.
£83.10 incl.
Backorder available
Usually ships within 3–8 weeks

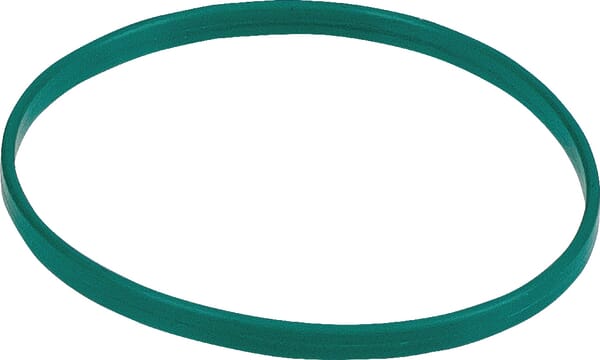

BPA000250642
Voss Vossform seal ring 35L DVF35L
£2.29 excl.
£2.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288445
Voss Coupling 12L 1/2NPT GEV12L12NPT
£5.10 excl.
£6.12 incl.
In stock
Expected to ship on Monday 5 October
BPA000287246
Voss Straight Adaptor (No M/R) 8L 6L GS86L
£4.30 excl.
£5.16 incl.
In stock
Expected to ship on Monday 5 October

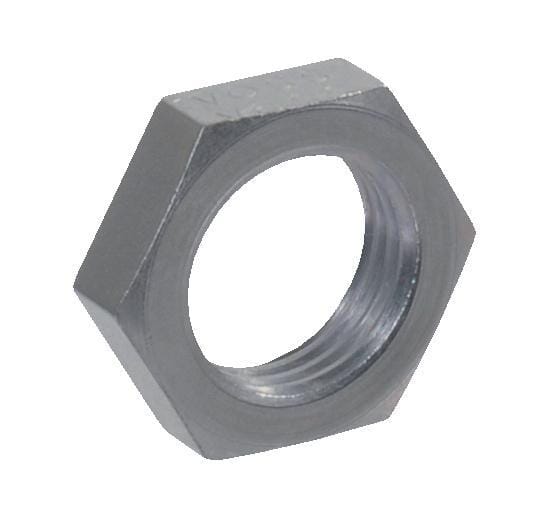

BPA000316632
