Product details

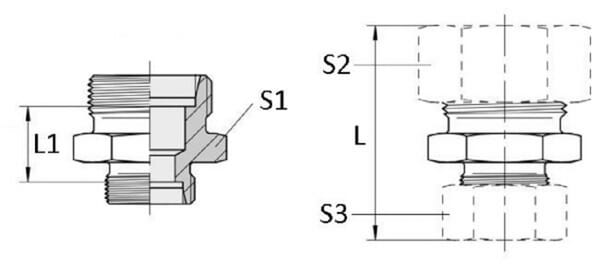

| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M26 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 18 mm |
| DIN standard | 2401 |
| L1Connections distance | 15.5 mm |
| LTotal length | 47 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S3Connection no 1 wrench size | 32.0 mm |
| Series connection 1 | 10L |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 150 g |
| Dimensions | 55 × 40 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000279937
Voss Coupling 18L R1/2 GAV18LR12
£9.16 excl.
£10.99 incl.
In stock
Expected to ship on Friday 2 October

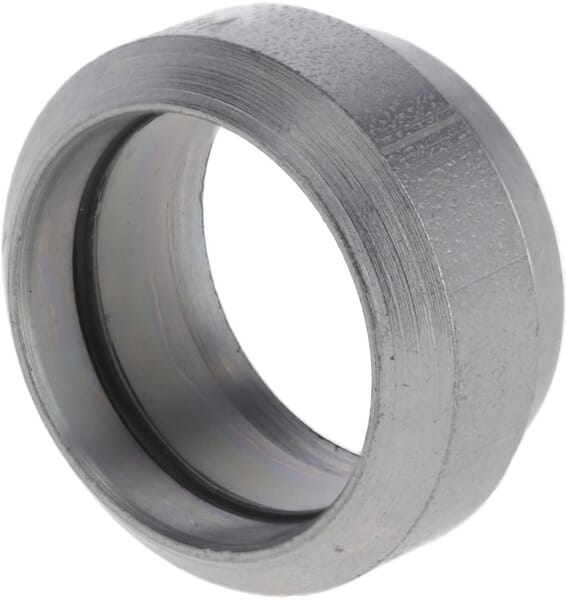

BPA000262821
