Roll over image to zoom in · Click to see full view
£9.35
excl. VAT
£11.22 incl. VAT
£11.22
incl. VAT
£9.35 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M26 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 18 mm |
| Connection 2, thread diameter | M26 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 diameter | 18 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |

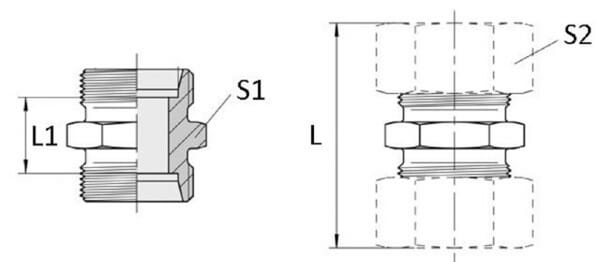

| L1Connections distance | 16 mm |
| LTotal length | 48 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Multiple corrosion resistance |
| Pros | Optimal cutting ring connection and functionality |
| S1Connection no 1 wrench size | 32.0 mm |
| Series connection 1 | 18L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 207 g |
| Dimensions | 123 × 35 × 29 mm |
| Dangerous goods | No |
