£15.48
excl. VAT
£18.58 incl. VAT
£18.58
incl. VAT
£15.48 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 16 mm |
| Connection 2, length | 54.5 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 diameter | 16 mm |
| Connection no 1 length | 36.5 mm |
| D2Series connection 1 | 16S |
| DIN standard | 2401 |
| Max working pressure | 420 BAR |
| Product details | Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Assembly with end stop, Reduced risk of leakage |
| S2Connection no 1 wrench size | 36.0 mm |
| Seal material | FKM |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 276 g |
| Dimensions | 62 × 40 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000348129
Voss Reducing Adaptor M/F (Cs) R1/2 R3/8 REDR1238WD
£5.20 excl.
£6.24 incl.
In stock
Expected to ship on Monday 5 October
BPA000402309
Voss Elbow coupling 10S-3/8 BSPT WES10SRK38
£7.49 excl.
£8.99 incl.
In stock
Expected to ship on Monday 5 October
BPA000287206
Voss Straight Adaptor (no M/R) 28L GS28L
£10.43 excl.
£12.52 incl.
In stock
Expected to ship on Monday 5 October

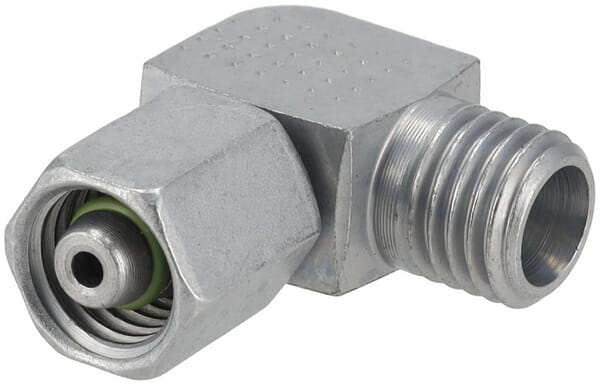

BPA000268335
