Product details
| Connection 1, thread diameter | M30 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 diameter | 20 mm |
| DIN standard | 2401, 2353, 3852 |

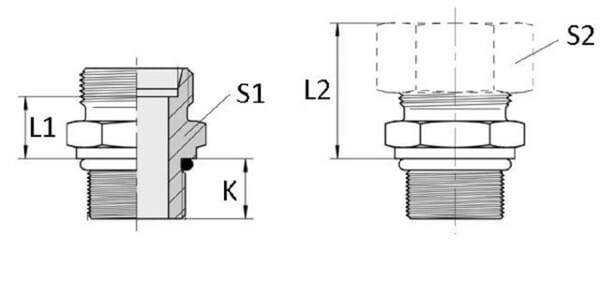

| KConnection no 1 thread length | 11.2 mm |
| L1Connection 2, centre to end distance | 20.5 mm |
| L2Connection no 1 center to end distance | 42 mm |
| Max working pressure | 420 BAR |
| Product details | 2S cutting ring- Optimum cutting ring connection and functionality, Multiple corrosion resistance - Hydraulic hose, Hydraulic pipes - Viton seal available on request, SAE standard : 514 |
| S1Connection no 1 wrench size | 32.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 20S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 245 g |
| Dimensions | 58 × 55 × 41 mm |
| Dangerous goods | No |
