Roll over image to zoom in · Click to see full view
£14.53
excl. VAT
£17.44 incl. VAT
£17.44
incl. VAT
£14.53 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 20 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 diameter | 20 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |

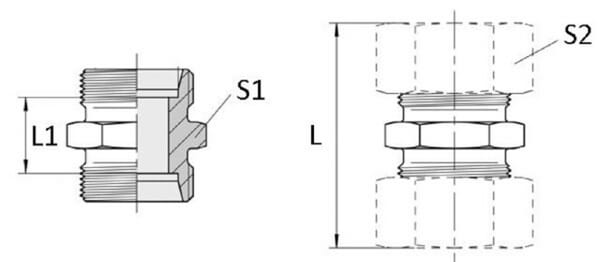

| L1Connections distance | 23 mm |
| LTotal length | 66 mm |
| Max working pressure | 420 BAR |
| Product details | 2S cutting ring, Multiple corrosion resistance |
| Pros | Optimal cutting ring connection and functionality |
| S1Connection no 1 wrench size | 36.0 mm |
| Series connection 1 | 20S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 376 g |
| Dimensions | 79 × 42 × 42 mm |
| Dangerous goods | No |
You might also like
BPA000252368

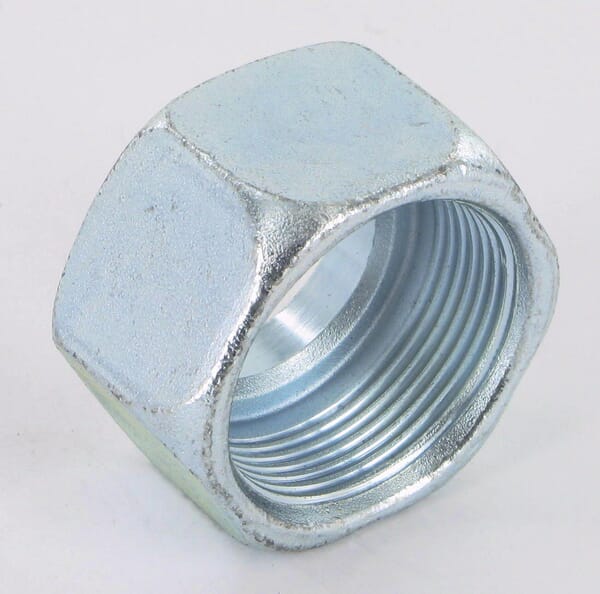

Voss EAG33N screw cap EAG33N
£11.70 excl.
£14.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348212
Voss 18L 6L coupling REDSD186L
£14.08 excl.
£16.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000381009
Voss Coupling UMAG33x26.34NU UMAG332634NU
£13.15 excl.
£15.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396089

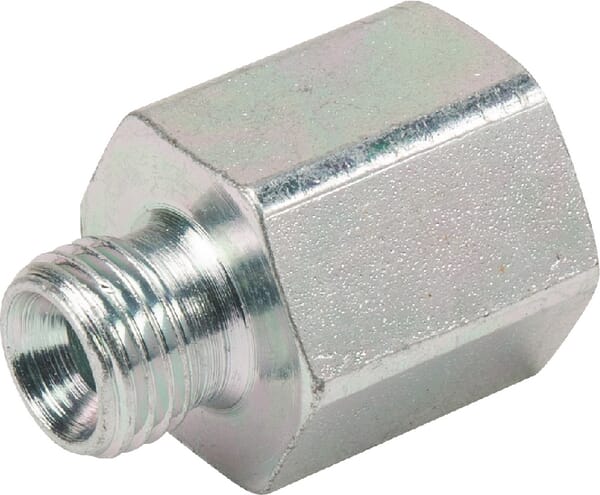

Voss Adaptor 1/4 x 3/8 BSP VRBV0406
