Roll over image to zoom in · Click to see full view
£8.54
excl. VAT
£10.25 incl. VAT
£10.25
incl. VAT
£8.54 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 38 mm |
|---|---|
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 diameter | 22 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 18 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 14 mm |
| L1Connection 2, centre to end distance | 16.5 mm |
| L2Connection no 1 center to end distance | 33 mm |
| Max. tightening torque | 170 N·m |
| Max working pressure | 200 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 32.0 mm |
| Series connection 1 | 22L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 94 g |
| Dimensions | 45 × 45 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000288622
Voss Coupling 8LL 1/8NPT GEV8LL18NPT
£3.22 excl.
£3.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000247426
Voss Rotary coupling 28L R1" DGWEV28LR1
£340.53 excl.
£408.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288260
Voss Coupling, GES 4LL R1/8-K GES4LLR18K
£0.78 excl.
£0.94 incl.
Backorder available
Usually ships within 3–8 weeks

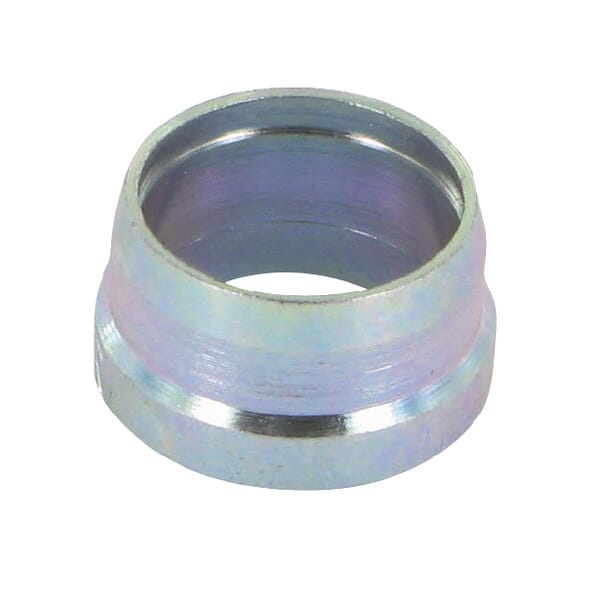

BPA000251365
