Roll over image to zoom in · Click to see full view
£19.52
excl. VAT
£23.42 incl. VAT
£23.42
incl. VAT
£19.52 excl. VAT
In stock
Expected to ship on Wednesday 7 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread length | 18 mm |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 18 mm |
| Connection no 1 thread length | 18 mm |
| DIN standard | 2401 |
| Inside diameter | 18 mm |

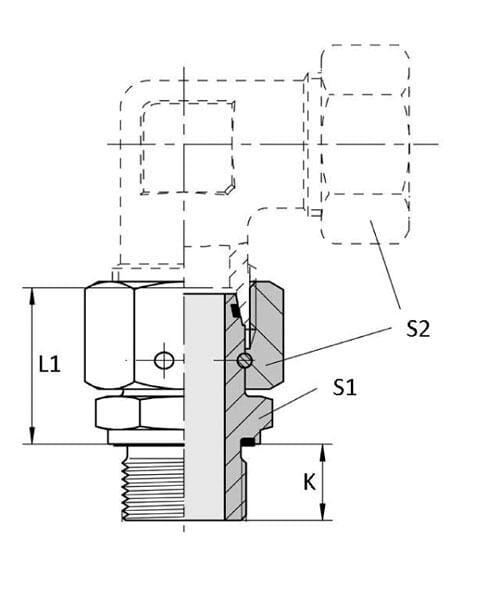

| KConnection no 1 length | 18 mm |
| L1Connection 2, centre to end distance | 48 mm |
| Max. tightening torque | 250 N·m |
| Max working pressure | 420 BAR |
| Product details | Pre-assembled with O-ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 46.0 mm |
| Series connection 1 | 25S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 507 g |
| Dimensions | 66 × 52 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000288359
Voss Adaptor 8L 1/8 BSP GES8LR18WD
£2.88 excl.
£3.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348311
Voss Coupling 12L 10L REDVD1210L
£7.01 excl.
£8.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258549
Voss Adjustable male stud 12L ELV12L
£12.96 excl.
£15.55 incl.
In stock
Expected to ship on Monday 5 October
BPA000268238
Voss 45° cutting ring conn. 10S EVSD10S
£35.57 excl.
£42.68 incl.
In stock
Expected to ship on Monday 5 October
BPA000269947
Voss Flared fitting complete 12S 12x1.5 FFCS1215
£15.26 excl.
£18.31 incl.
Backorder available
Usually ships within 3–8 weeks

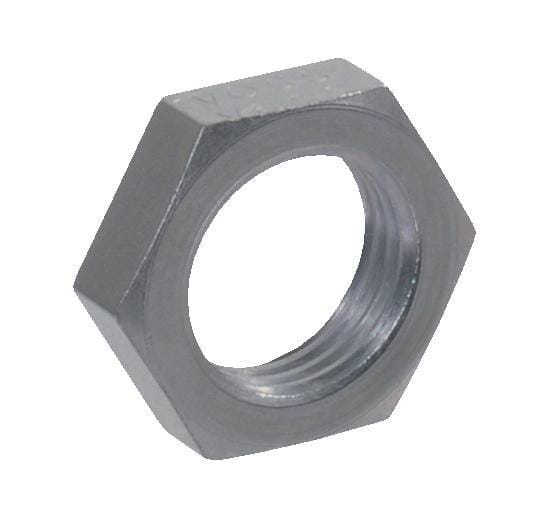

BPA000316640
