Roll over image to zoom in · Click to see full view
£17.68
excl. VAT
£21.22 incl. VAT
£21.22
incl. VAT
£17.68 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M36 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 25 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Cutting ring, Gland nuts, WD seal |
| ISO standard | 228 |

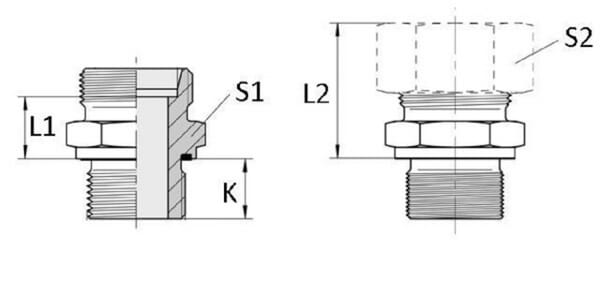

| KConnection no 1 thread length | 18 mm |
| L1Connection 2, centre to end distance | 23 mm |
| L2Connection no 1 center to end distance | 47 mm |
| Max working pressure | 420 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 41.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 25S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 488 g |
| Dimensions | 78 × 55 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000258577
Voss Adjustable male stud 8S ELVD8S
£17.68 excl.
£21.22 incl.
In stock
Expected to ship on Friday 2 October
BPA000287930
Voss Coupling 12S M18 GES12SM18
£2.19 excl.
£2.63 incl.
In stock
Expected to ship on Friday 2 October
BPA000287951
Voss Coupling 12S R3/8 GES12SR38WD
£2.95 excl.
£3.54 incl.
In stock
Expected to ship on Friday 2 October
BPA000287765
Voss Coupling 10L 7/16UNF GES10L716UNF
£12.50 excl.
£15.00 incl.
In stock
Expected to ship on Friday 2 October
BPA000316867

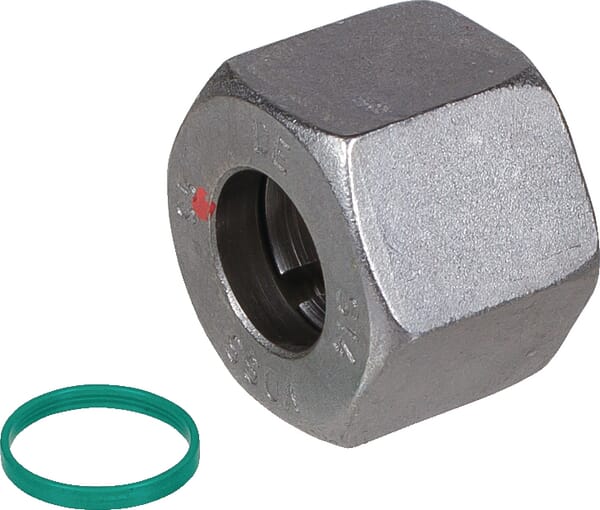

Voss Vossform nut+seal ring 14S MVF14SWD
