Roll over image to zoom in · Click to see full view
£9.84
excl. VAT
£11.81 incl. VAT
£11.81
incl. VAT
£9.84 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 43 mm |
|---|---|
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 23 mm |
| GConnection no 1 diameter | 28 mm |
| iConnection no 1 thread length | 18 mm |
| ISO standard | 228 |
| L2Connection no 1 center to end distance | 34 mm |
| LConnection 2, centre to end distance | 17.5 mm |
| Max. tightening torque | 230 N·m |
| Max working pressure | 250 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes - Do not use for 4-layer hose HDR (4SP) |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 28L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 41.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106786107 |
|---|---|
| Unit of measure | EA |
| Weight | 164 g |
| Dimensions | 46 × 46 × 43 mm |
| Dangerous goods | No |
You might also like
BPA000355197
Voss Banjo coupling 12L R1/4 RSWV12LR14WD
£20.53 excl.
£24.64 incl.
In stock
Expected to ship on Monday 5 October
BPA000399963
Voss Elbow Coupling 8L WS8L
£5.59 excl.
£6.71 incl.
In stock
Expected to ship on Monday 5 October
BPA000315173
Voss Gauge Coupl F 10 SR 1/2 BSP MAV10SR12
£7.20 excl.
£8.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402344
Voss Angled screw connection WES16S12NPT
£13.42 excl.
£16.10 incl.
In stock
Expected to ship on Monday 5 October

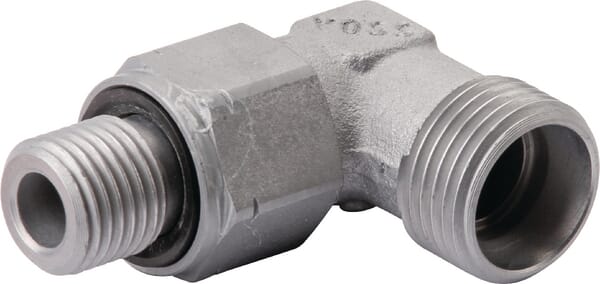

BPA000268290
Voss Coupling+locking nut 12L R3/8 EWSC12LR38WD
£16.70 excl.
£20.04 incl.
In stock
Expected to ship on Monday 5 October

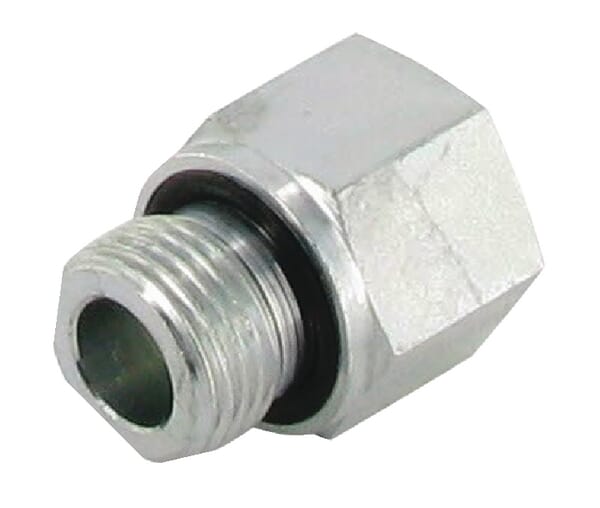

BPA000348105
