Roll over image to zoom in · Click to see full view
£15.43
excl. VAT
£18.52 incl. VAT
£18.52
incl. VAT
£15.43 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 57 mm |
|---|---|
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 diameter | 30 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 25 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 20 mm |
| L1Connection 2, centre to end distance | 23.5 mm |
| L2Connection no 1 center to end distance | 50 mm |
| Max. tightening torque | 700 N·m |
| Max working pressure | 200 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 50.0 mm |
| Series connection 1 | 30S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 424 g |
| Dimensions | 58 × 56 × 51 mm |
| Dangerous goods | No |
You might also like
BPA000327251

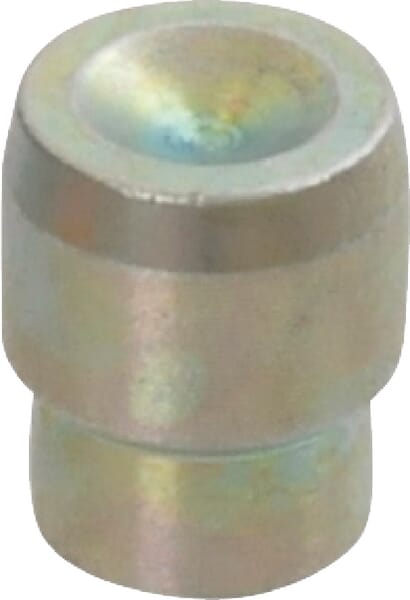

Voss Self-locking nut OBAG33NU OBAG33NU
£5.15 excl.
£6.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396352
Voss Plug+union nut 38S VSMV38S
£18.96 excl.
£22.75 incl.
In stock
Expected to ship on Friday 2 October
BPA000258287

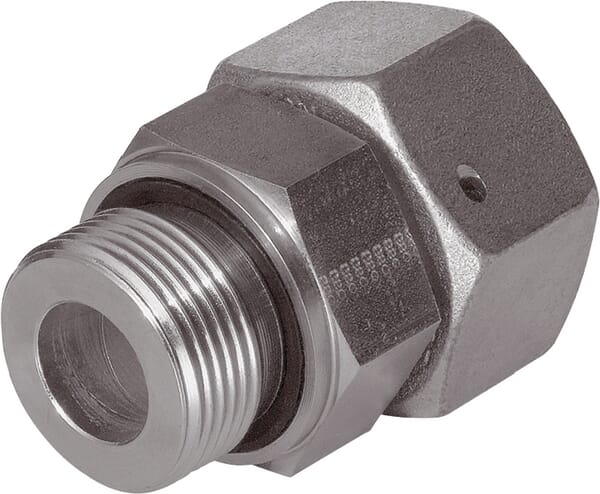

Voss Coupling 8L R1/4 EGESD8LR14WD
