Roll over image to zoom in · Click to see full view
£38.74
excl. VAT
£46.49 incl. VAT
£46.49
incl. VAT
£38.74 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 diameter | 30 mm |
| Connection no 1 thread length | 18 mm |
| Inside diameter | 18 mm |

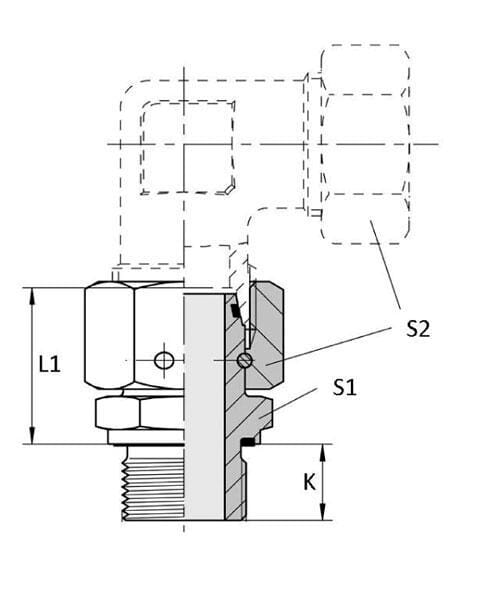

| KConnection no 1 length | 18 mm |
| L1Connection 2, centre to end distance | 51.5 mm |
| Max. tightening torque | 250 N·m |
| Max working pressure | 420 BAR |
| Product details | Pre-assembled with O-ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 50.0 mm |
| Series connection 1 | 30S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 547 g |
| Dimensions | 136 × 87 × 25 mm |
| Dangerous goods | No |
