Roll over image to zoom in · Click to see full view
£29.97
excl. VAT
£35.96 incl. VAT
£35.96
incl. VAT
£29.97 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M52 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 55.0 mm |
| Connection no 1 diameter | 38 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| KConnection no 1 thread length | 22 mm |
| L1Connection 2, centre to end distance | 26 mm |
| L2Connection no 1 center to end distance | 57 mm |
| Max working pressure | 200 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 60.0 mm |
| Series connection 1 | 38S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 910 g |
| Dimensions | 80 × 67 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000393093
Voss Nipple 1/4 BSP x 3/8 BSPT VNBBT0406
£2.35 excl.
£2.82 incl.
In stock
Expected to ship on Friday 2 October
BPA000258574
Voss Adjustable male stud 6L ELVD6L
£8.52 excl.
£10.22 incl.
In stock
Expected to ship on Friday 2 October
BPA000381024
Voss Male stud coupling 7/16 JIC x 1/2 MANO UMFA07MJ08FG
£20.07 excl.
£24.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280755

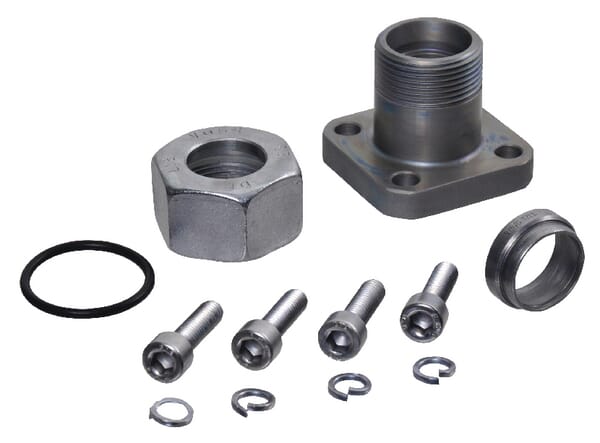

Voss Connecting flange 15L GFV15L40
£29.20 excl.
£35.04 incl.
In stock
Expected to ship on Friday 2 October
BPA000348103

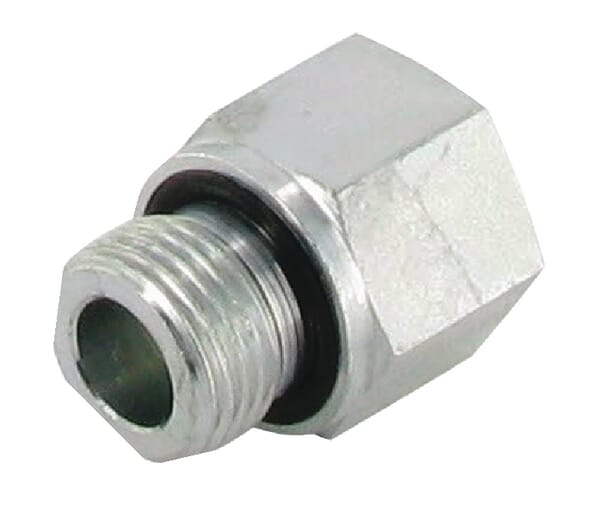

Voss Reducing Adaptor M/F (CS) R1 R1-1/2 REDR1112WD
