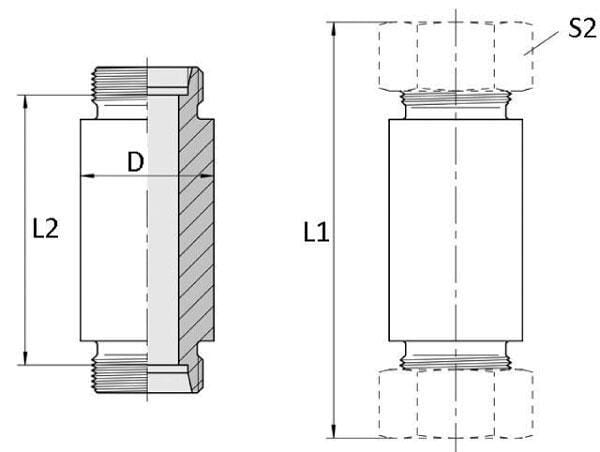

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 42 mm |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |
| Connection no 1 center to end distance | 70 mm |
| Connection no 1 diameter | 42 mm |
| Connection no 1 wrench size | 60.0 mm |
| Connections distance | 115 mm |
| DIN standard | 2401, 2353 |
| Max working pressure | 250 BAR |
| Outside diameter | 60 mm |
| Product details | Weld-on bulkhead coupling, 2S cutting ring, Optimal cutting ring connection and functionality |
| Pros | 2S cutting ring |
| Series connection 1 | 42L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1551 g |
| Dimensions | 123 × 67 × 59 mm |
| Dangerous goods | No |
You might also like
BPA000279891
Voss Coupling 35L R1 1/4 GAS35LR114
£43.12 excl.
£51.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327248

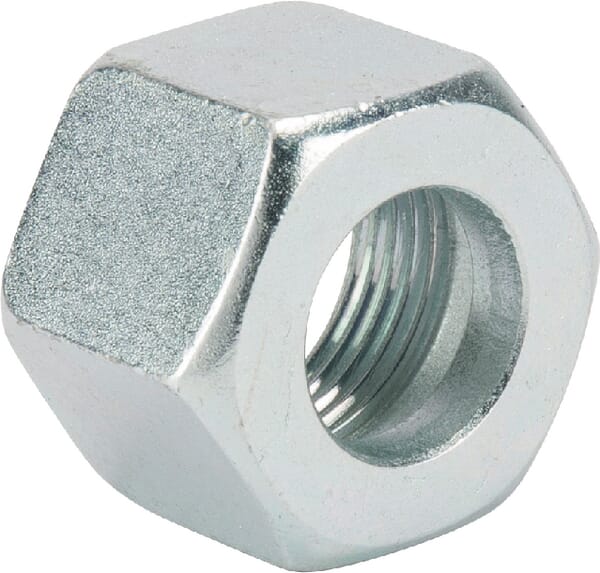

Voss Self-locking nut OBAG27 OBAG27
£13.14 excl.
£15.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402408
Voss Elbow Coupling 10L R1/4 WEV10LRK14
£7.33 excl.
£8.80 incl.
In stock
Expected to ship on Thursday 1 October
BPA000288168
Voss Coupling 28L 1- 5/16UNF GES28L1516UNF
£30.23 excl.
£36.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000269950

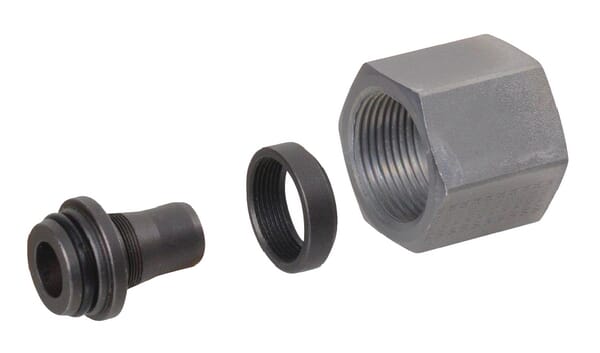

Voss Flared fitting complete 20S 20x2 FFCS202
