Product details
| Body height | 52 mm |
|---|---|
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 19 mm |
| Connection 2, thread diameter | M48 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |
| Connection no 1 center to end distance | 42 mm |
| Connection no 1 diameter | 42 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 36 mm |
| iConnection no 1 thread length | 22 mm |
| ISO standard | 228 |
| Max. tightening torque | 500 N·m |
| Max working pressure | 250 BAR |
| Product details | WD = Pre-assembled with flexible seal, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 42L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 55.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 350 g |
| Dimensions | 50 × 55 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000232692
Voss Weld-on coupling ASV 8L-90' ASV8L90
£5.55 excl.
£6.66 incl.
In stock
Expected to ship on Friday 2 October
BPA000287343

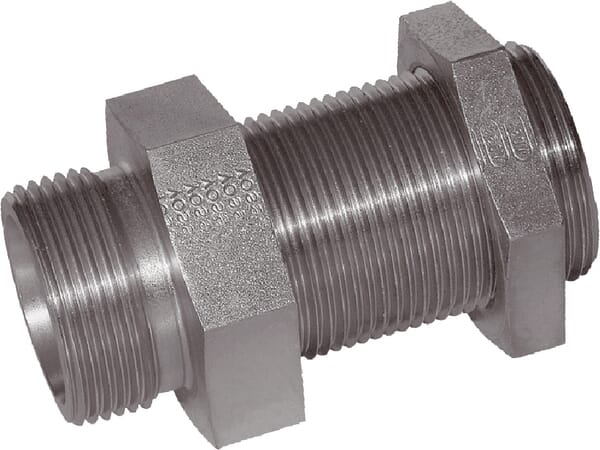

Voss Cutting ring coupling bulkhead S6L GSS6L
