Roll over image to zoom in · Click to see full view
£0.93
excl. VAT
£1.12 incl. VAT
£1.12
incl. VAT
£0.93 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 23.5 mm |
|---|---|
| Connection 1, thread diameter | M10 |
| Connection 1, thread pitch | 1.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 4 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 8 mm |
| L1Connection 2, centre to end distance | 8.5 mm |
| L2Connection no 1 center to end distance | 23 mm |
| Max. tightening torque | 25 N·m |
| Max working pressure | 400 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 14.0 mm |
| Series connection 1 | 6L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14 g |
| Dimensions | 25 × 15 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000258168

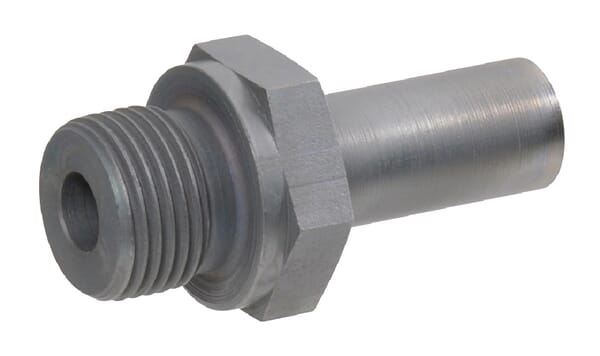

Voss Coupling 18L R1/2 EGES18LR12WD
£6.64 excl.
£7.97 incl.
In stock
Expected to ship on Monday 5 October
BPA000261094

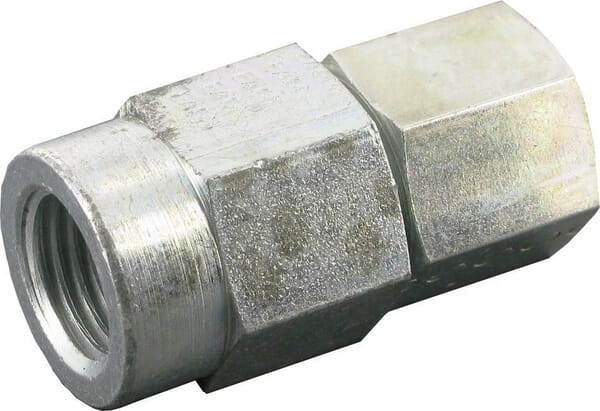

Voss Gauge Coupl F pipe 8-LR-1/4" EMASD8LR14
