Roll over image to zoom in · Click to see full view
£2.20
excl. VAT
£2.64 incl. VAT
£2.64
incl. VAT
£2.20 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/8 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread taper |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| KConnection no 1 thread length | 8 mm |
| L1Connection 2, centre to end distance | 8.5 mm |
| L2Connection no 1 center to end distance | 23 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 14.0 mm |
| Series connection 1 | 6L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14 g |
| Dimensions | 35 × 16 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000355220
Voss Banjo coupling 20S M27 RSWV20SM27WD
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000381026
Voss Male stud coupling 3/4 JIC x 1/4 MANO UMFA12MJ04FG
£8.00 excl.
£9.60 incl.
In stock
Expected to ship on Friday 2 October
BPA000269946

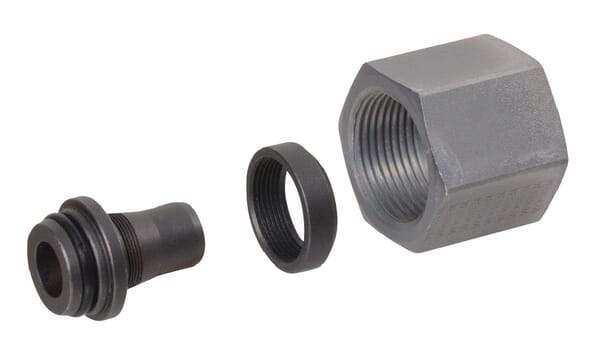

Voss Flared fitting complete 10S 10x1.5 FFCS1015
