Roll over image to zoom in · Click to see full view
£4.82
excl. VAT
£5.78 incl. VAT
£5.78
incl. VAT
£4.82 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

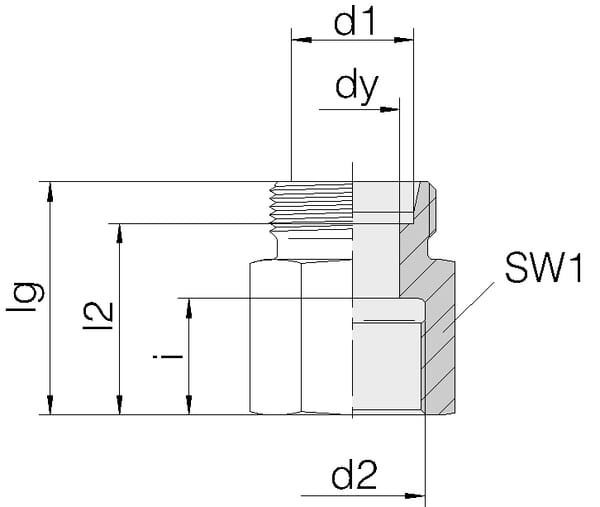

| Body height | 33 mm |
|---|---|
| Connection 1, thread diameter | M14 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 length | 17 mm |
| Inside diameter | 36.88 mm |
| L1Connection no 1 center to end distance | 41 mm |
| L2Connection 2, centre to end distance | 26 mm |
| Max working pressure | 630 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling |
| Pros | Reduced risk of leakage, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 19.0 mm |
| Series connection 1 | 6S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 48 g |
| Dimensions | 35 × 20 × 20 mm |
| Dangerous goods | No |
