Roll over image to zoom in · Click to see full view
£2.06
excl. VAT
£2.47 incl. VAT
£2.47
incl. VAT
£2.06 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 32 mm |
|---|---|
| Connection 1, thread diameter | M14 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 4 mm |
| GConnection no 1 diameter | 6 mm |
| iConnection no 1 thread length | 12 mm |
| ISO standard | 228 |
| L2Connection no 1 center to end distance | 28 mm |
| LConnection 2, centre to end distance | 13 mm |
| Max. tightening torque | 60 N·m |
| Max working pressure | 800 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes - Do not use for 4-layer hose HDR (4SP) |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 6S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 19.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 35 g |
| Dimensions | 35 × 22 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000288403
Voss Bulkhead coupling 10L R1/2 GESV10LR12
£16.70 excl.
£20.04 incl.
In stock
Expected to ship on Friday 2 October
BPA000268256
Voss Cutting ring connector 8S , 45° EVSD8S
£31.94 excl.
£38.33 incl.
In stock
Expected to ship on Friday 2 October
BPA000258253
Voss Coupling 25S 1NPT EGESD25S1NPT
£52.03 excl.
£62.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374285
Voss T piece 6L R1/8 TEV6LR18
£16.03 excl.
£19.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288407

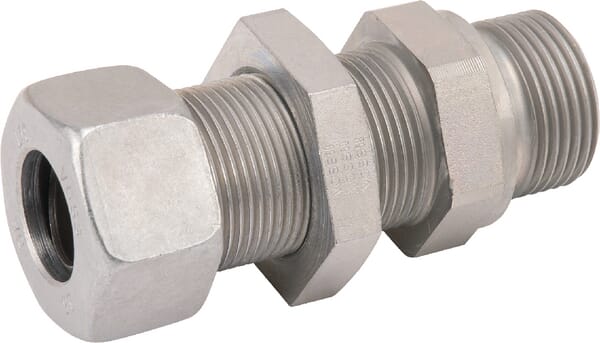

Voss Bulkhead coupling 12L R3/8 GESV12LR38
