Roll over image to zoom in · Click to see full view
£14.61
excl. VAT
£17.53 incl. VAT
£17.53
incl. VAT
£14.61 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M14 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 7/16 Inch |
| Connection 2, threads per inch | 20 |
| Connection 2, thread type | UNF |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2401, 2353, 3852 |

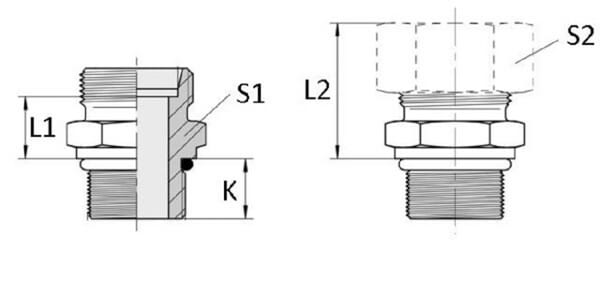

| KConnection no 1 thread length | 9.2 mm |
| L1Connection 2, centre to end distance | 10 mm |
| L2Connection no 1 center to end distance | 25 mm |
| Max working pressure | 500 BAR |
| Product details | 2S cutting ring- Optimum cutting ring connection and functionality, Multiple corrosion resistance - Hydraulic hose, Hydraulic pipes - Viton seal available on request, SAE standard : 514 |
| S1Connection no 1 wrench size | 17.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 8L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 39 g |
| Dimensions | 35 × 18 × 18 mm |
| Dangerous goods | No |
