Roll over image to zoom in · Click to see full view
£2.25
excl. VAT
£2.70 incl. VAT
£2.70
incl. VAT
£2.25 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| ANSI standard | B1.20.1-1983. |
|---|---|
| Body height | 35.1 mm |
| Connection 1, thread diameter | 1/4 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSPT |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2353 |
| Inside diameter | 8 mm |
| KConnection no 1 thread length | 10.2 mm |
| Max. tightening torque | 35 N·m |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring |
| S1Connection no 1 wrench size | 19.0 mm |
| Series connection 1 | 8S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 38 g |
| Dimensions | 36 × 18 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000348203
Voss 16S 6S coupling REDSD166S
£12.67 excl.
£15.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348241
Voss 25S 8S coupling REDSD258S
£29.04 excl.
£34.85 incl.
In stock
Expected to ship on Friday 2 October
BPA000287948
Voss Cut ring coupling 12S M20x1,5 - BSP 3/8" - Male GES12SR38
£2.74 excl.
£3.29 incl.
In stock
Expected to ship on Friday 2 October
BPA000288626
Voss Coupling 8L M12 GEV8LM12
£2.70 excl.
£3.24 incl.
In stock
Expected to ship on Friday 2 October
BPA000349176
Voss Changeover 7/16 JIC x 3/8 BSPT RIBTV0706
£6.21 excl.
£7.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327242

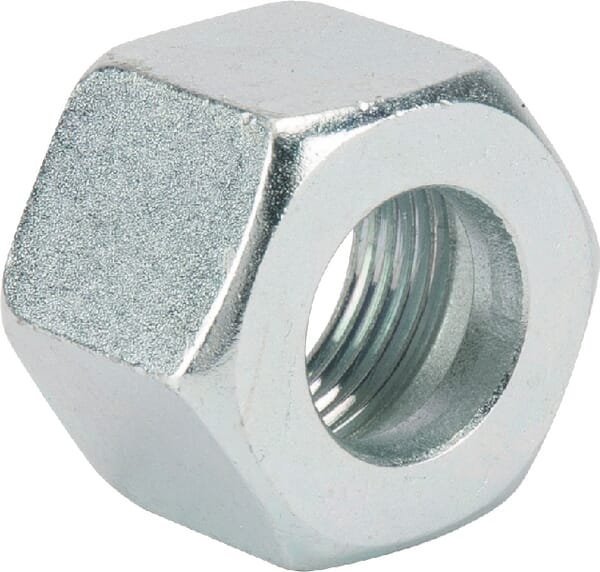

Voss OBAG13 self-locking nut OBAG13
