£2.79
excl. VAT
£3.35 incl. VAT
£3.35
incl. VAT
£2.79 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 34 mm |
|---|---|
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | NPT |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 15 mm |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 30 mm |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 8 mm |
| iConnection no 1 thread length | 12 mm |
| ISO standard | 228 |
| Max. tightening torque | 60 N·m |
| Max working pressure | 800 BAR |
| Product details | WD = Pre-assembled with flexible seal, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 8S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 19.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 40 g |
| Dimensions | 34 × 22 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000380992
Voss Coupling UMAG13x16.150NU UMAG1316150NU
£3.02 excl.
£3.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310394

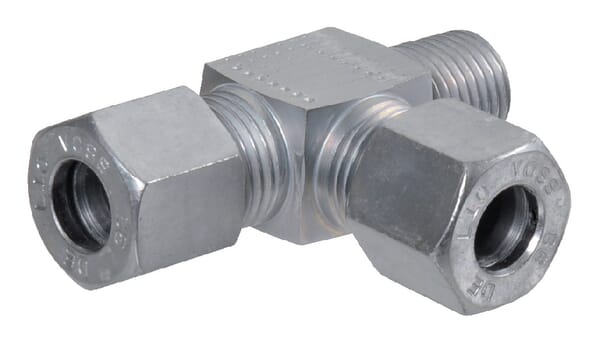

Voss L coupling 8L-M12 LEV8LMK12
£34.58 excl.
£41.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000360013

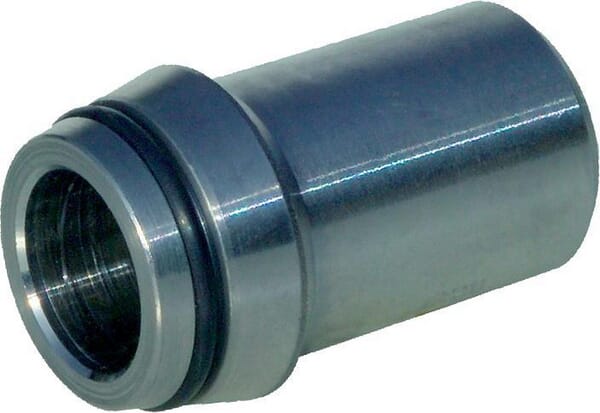

Voss Weldable stud 25mm x 4 SN254
£6.83 excl.
£8.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000316643

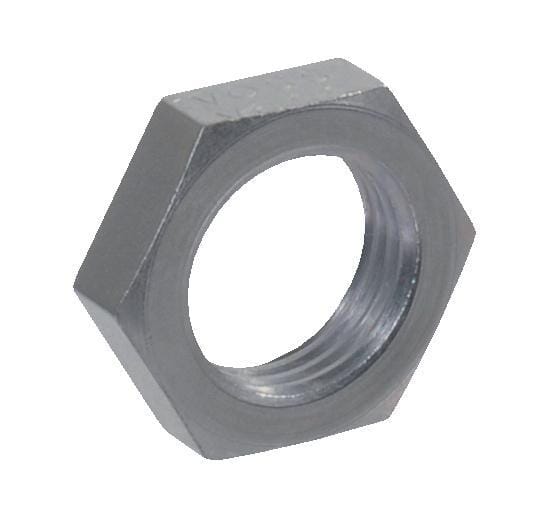

Voss Locknut M26x1.50 steel MSV2615
