£16.59
excl. VAT
£19.91 incl. VAT
£19.91
incl. VAT
£16.59 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |

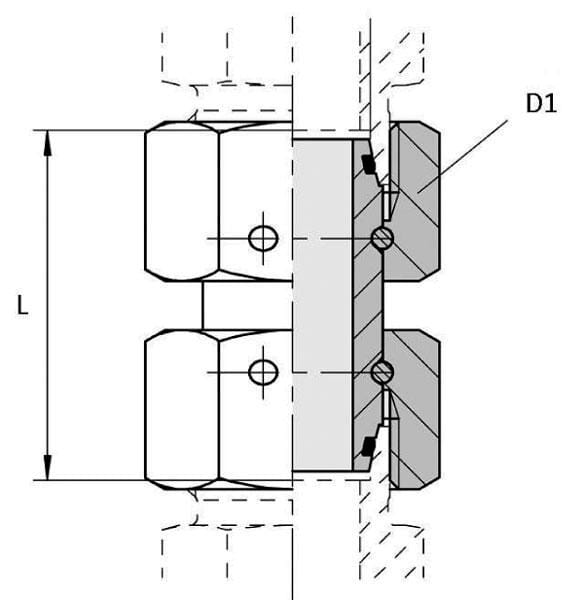

| Connection centre to insert distance | 40.5 mm |
| Connection no 1 diameter | 8 mm |
| Connection no 1 length | 40.5 mm |
| Connection no 1 wrench size | 19.0 mm |
| DIN standard | 2401 |

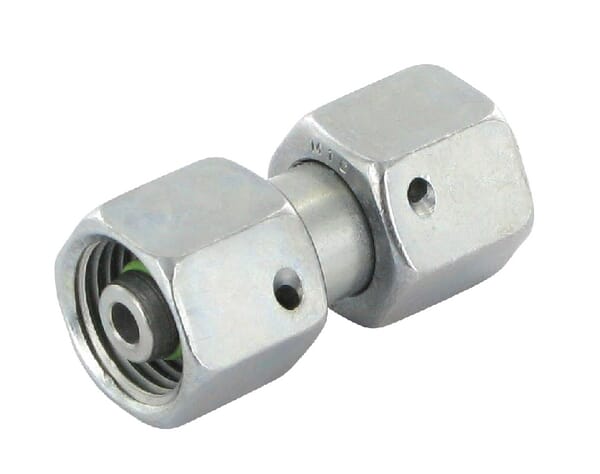

| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| Inside diameter side 2 | 4 mm |
| LLength | 40.5 mm |
| Max working pressure | 800 BAR |
| Product details | Multiple corrosion resistance thanks to standard galvanising, Similar in design to the GVO but for higher pressures, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 8S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Total length | 40.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 65 g |
| Dimensions | 37 × 21 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000288448
Voss Coupling 12L 3/8NPT GEV12L38NPT
£3.65 excl.
£4.38 incl.
Backorder available
Usually ships within 3–8 weeks

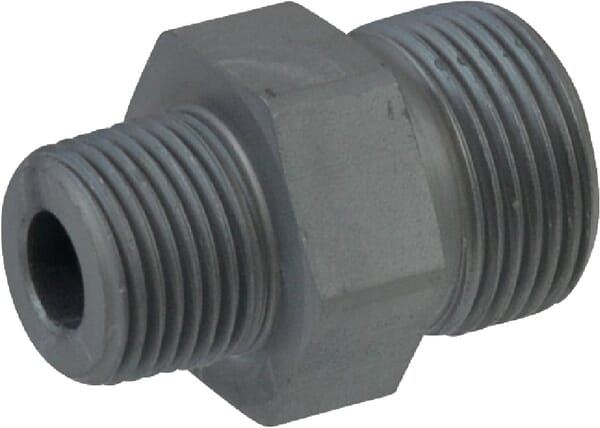

BPA000287970
