Roll over image to zoom in · Click to see full view
£24.41
excl. VAT
£29.29 incl. VAT
£29.29
incl. VAT
£24.41 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

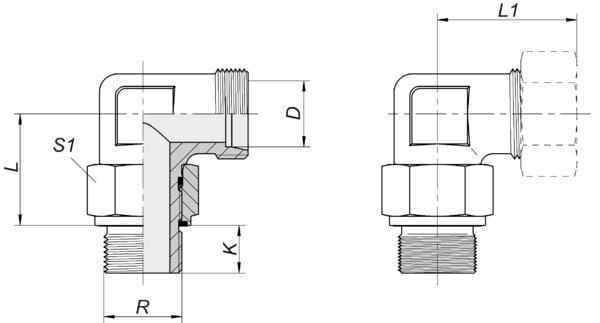

Product details
| Connection 1, thread diameter | M18 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 48 mm |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 24 mm |
| Connection no 1 diameter | 12 mm |
| Inside diameter | 4 mm |
| KConnection no 1 thread length | 12 mm |
| Material | Steel |
| Max. tightening torque | 50 N·m |
| Max working pressure | 315 BAR |
| Product details | Multiple corrosion resistance, Counter coupling with male thread, Adjustable direction, The adjusted direction is fixed by lock nut |
| Pros | Low risk of leakage |
| S1Connection no 1 wrench size | 19.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 80 g |
| Dimensions | 45 × 35 × 20 mm |
| Dangerous goods | No |
You might also like

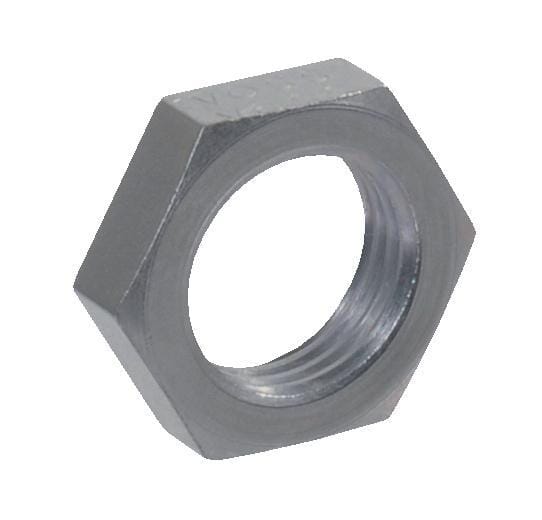

BPA000316648
Voss Locknut M52x2.00 steel MSV5220
£14.21 excl.
£17.05 incl.
In stock
Expected to ship on Monday 5 October
BPA000380998
Voss Coupling UMAG17x15.21NU UMAG171521NU
£2.85 excl.
£3.42 incl.
Backorder available
Usually ships within 3–8 weeks

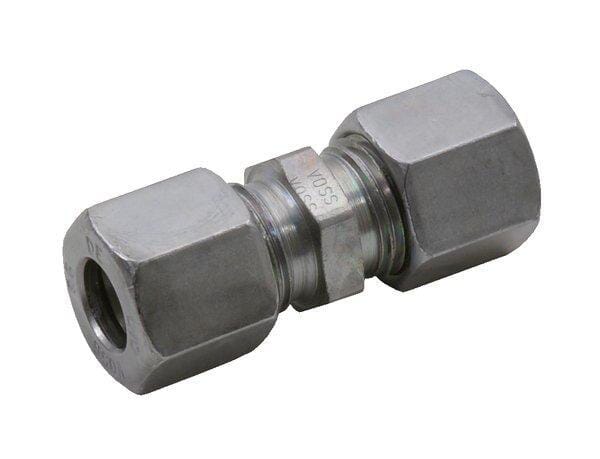

BPA000287514
