£2.71
excl. VAT
£3.25 incl. VAT
£3.25
incl. VAT
£2.71 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Body height | 30.5 mm |
|---|---|
| Connection 1, thread diameter | M12 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 4 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 11.5 mm |
| L2Connection no 1 center to end distance | 26 mm |
| Max. tightening torque | 95 N·m |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 22.0 mm |
| Series connection 1 | 6L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 40 g |
| Dimensions | 30 × 25 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000258572
Voss Adjustable male stud 38S ELVD38S
£148.16 excl.
£177.79 incl.
In stock
Expected to ship on Monday 21 September
BPA000399984

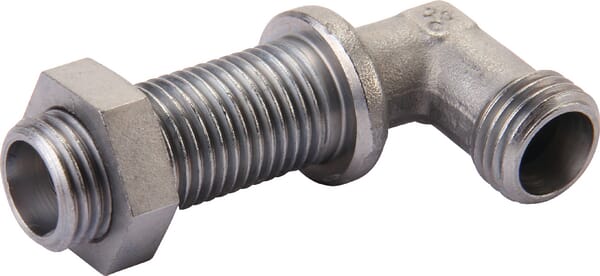

Voss Bulkhead elbow 12S (no M/R) WSS12S
£15.86 excl.
£19.03 incl.
In stock
Expected to ship on Monday 21 September
BPA000298862

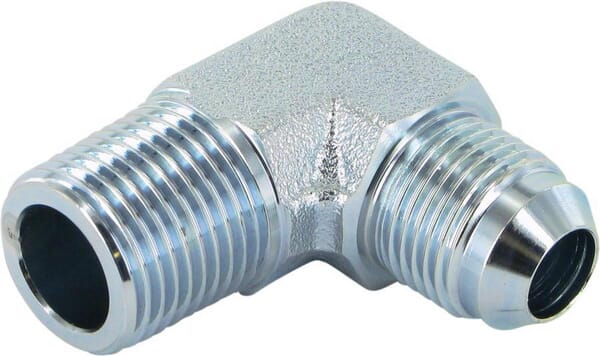

Voss Elbow 3/4JICx1/2BSPT KIBTV1208
£11.40 excl.
£13.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000374505

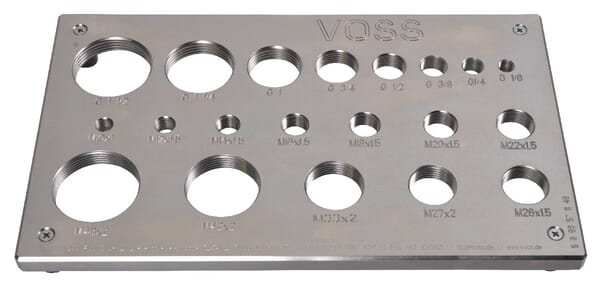

Voss M/BSP thread identification TIB001
