SKU BPA000288256 · Part No GES42LR114

Voss Cut ring coupling 42L M52x2,0 - BSP 1 1/4" - Male GES42LR114

Name: Cut ring coupling 42L M52x2,0 - BSP 1 1/4" - Male
Brand: Voss
SKU: BPA000288256
Price: 40.66 GBP
Availability: BackOrder

£33.88 excl. VAT

£40.66 incl. VAT

£33.88 excl. VAT

Out of stock — Backorder available

Usually ships within 3–8 weeks.

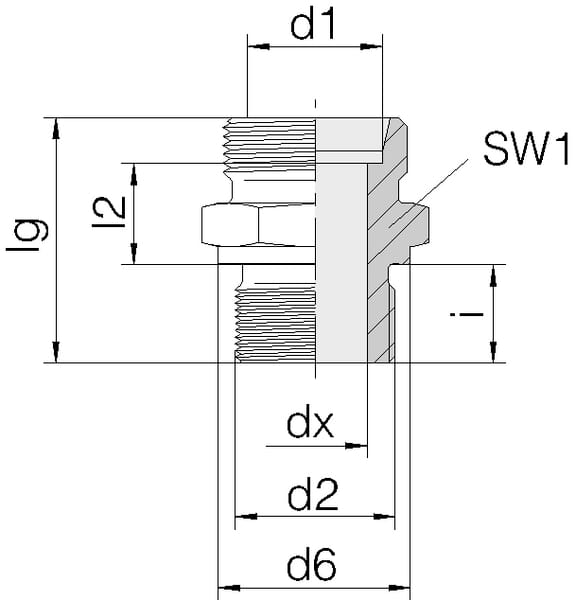

Product details

Body height	50 mm
Connection 1, thread diameter	M52
Connection 1, thread pitch	2.00 mm
Connection 1, thread type	Metric
Connection 1, type	Cutting ring
Connection 1, type - male/female	Male
Connection 2, thread diameter	1-1/4 Inch
Connection 2, threads per inch	11
Connection 2, thread type	BSP
Connection 2, type	Seal ring
Connection 2, type - male/female	Male
Connection 2, wrench/spanner size	60.0 mm
Connection no 1 diameter	42 mm
DIN standard	2401, 2353, 228, 3852
Inside diameter	30 mm
ISO standard	228
KConnection no 1 thread length	20 mm
L1Connection 2, centre to end distance	19 mm
L2Connection no 1 center to end distance	42 mm
Max. tightening torque	670 N·m
Max working pressure	200 BAR
Product details	Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance
Pros	Reduced risk of leakage
S1Connection no 1 wrench size	55.0 mm
Series connection 1	42L
Shape	Straight
Surface treatment	Nickel, Zinc
Unit	Each
