Roll over image to zoom in · Click to see full view
£28.18
excl. VAT
£33.82 incl. VAT
£33.82
incl. VAT
£28.18 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M12 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |

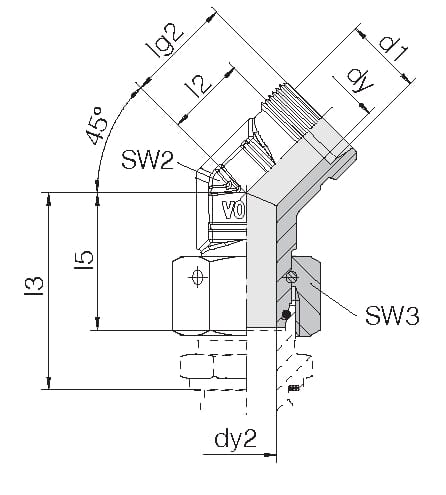

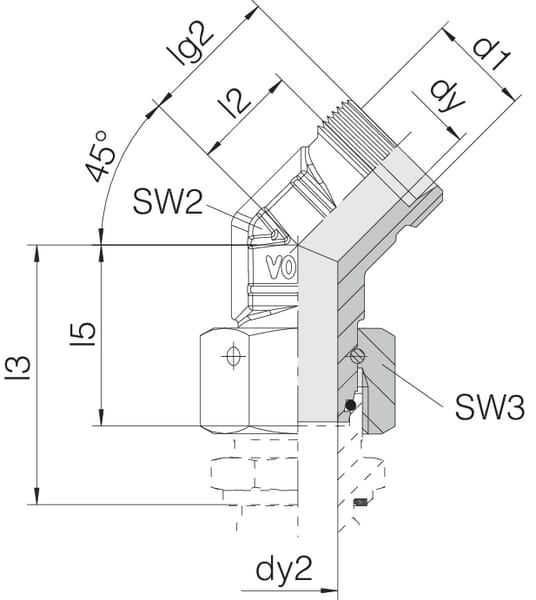

| Connection 2, centre to end distance | 21 mm |
| Connection 2, diameter | 6 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection centre to insert distance | 14 mm |
| Connection no 1 center to end distance | 26 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 length | 14 mm |
| Connection no 1 wrench size | 14.0 mm |
| DIN standard | 2401, 2353 |
| Includes | Body, Pre-assembled gland nut and cutting ring, Excluding separate gland nut and cutting ring |
| Inside diameter side 1 | 4 mm |
| Inside diameter side 2 | 2.5 mm |
| Length | 14 mm |
| Max working pressure | 315 BAR |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose nut or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Series connection 1 | 6L |

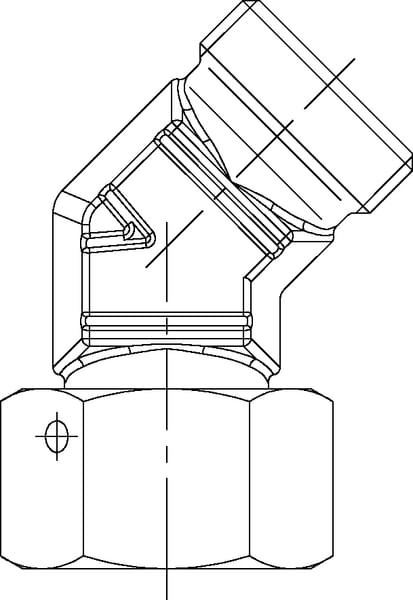

| Shape | Elbow 45° |
| Total length | 14 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 66 g |
| Dimensions | 47 × 31 × 23 mm |
| Dangerous goods | No |
You might also like
BPA000288023
Voss Coupling 15L R1/2 GES15LRK12
£7.63 excl.
£9.16 incl.
In stock
Expected to ship on Friday 2 October
BPA000268286

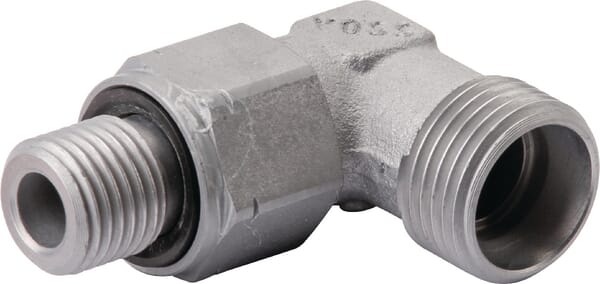

Voss Coupling+locking nut 10L R1/4 EWSC10LR14WD
